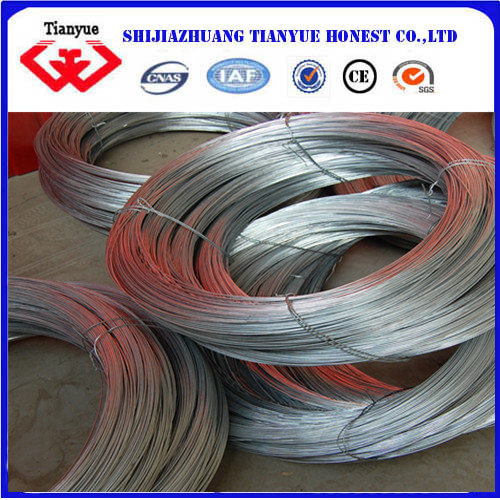

Galvanized wire can be divided into two categories: Electro galvanized wire and hot dipped galvanized
Though wire drawing, annealing, acid cleaning and galvanizing processes
With the features of being economical, soft, clean, easy to bind
Galvanized wire technical data
Wire diameter: Bwg8~ Bwg22
Zinc coating: 8-250g/mm2
Material: : Q195, Q235, SAE1006/1008 SAE1050/1065
Tensile strength: 350-680N/mm2
Galvanized wire Packing way
Package: Roll/reel
1Package: Inner plastic, outer weave
2Inner plastic, outer hessian cloth
Roll/reel Weight: 1kg--1000kg
Specific packaging requests are also accommodated
Galvanized wire Introduction:
Its solid and durable. Widely used in industry, agriculture and stock raising. We mainly produce the galvanized wire ( 16#--22#) in architecture. In addition, the galvanized wire is also can used as binding wire
The daily capacity is 200 tons.
We can customize U type and other type according to your requirement
| Galvanized Wire | |||
| Wire Gauge | SWG(mm) | BWG(mm) | Metric(mm) |
| 8 | 4.05 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | 4.00 |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | 2.50 |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.84 | 0.90 |
| 21 | 0.81 | 0.81 | 0.80 |
| 22 | 0.71 | 0.71 | 0.70 |
| |
