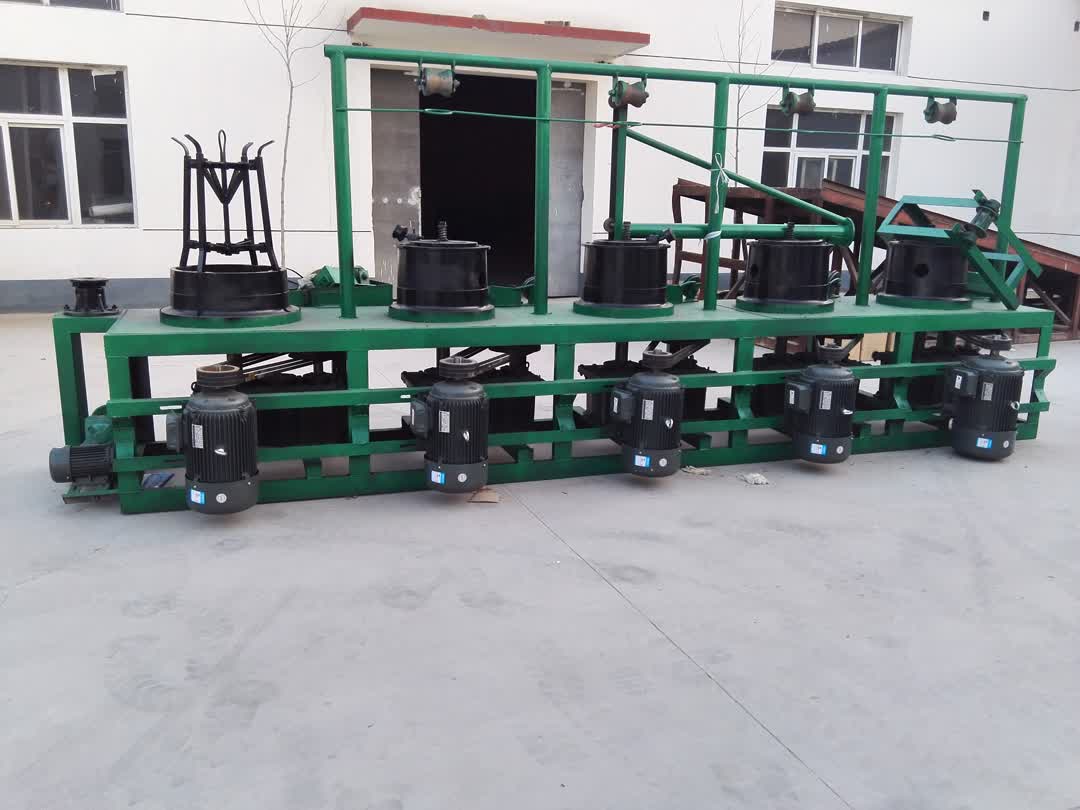

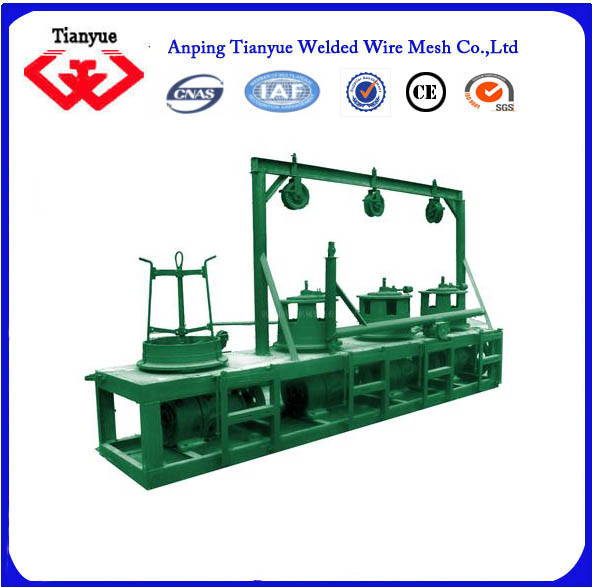

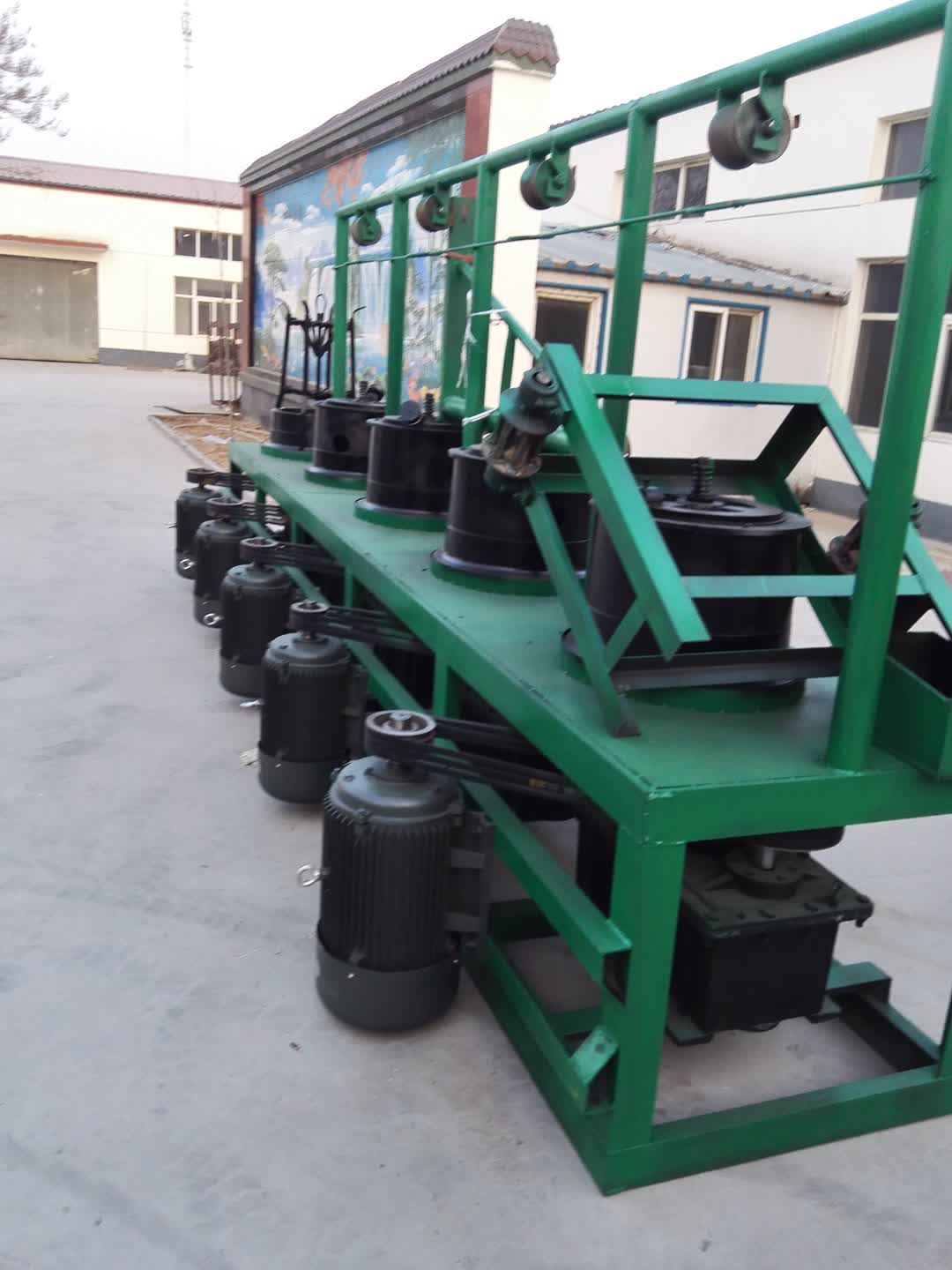

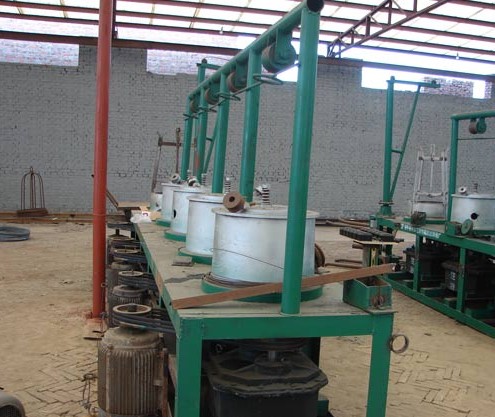

The wire drawing machine
| Specification | Size | Unit |
| Voltage | 380 | V |
| drum diameter | 550-600 | mm |
| the largest into wire | 6.5 | mm |
| the minimum outgoing wire | 3.7 | mm |
| linear speed | 120-160 | m/min. |
| Frequency | 50 | Hz |
| weight | 3000 | kg |
| Motor Power | 15*4＆1.5*1 | KW |
| Shape Size | 4.05*1.5*2.2 | m |
| wire drawing mould | 4 | piece |
| wire pointing machine | 1.0-8 | mm |
| wire weldeding machine | 10type |
