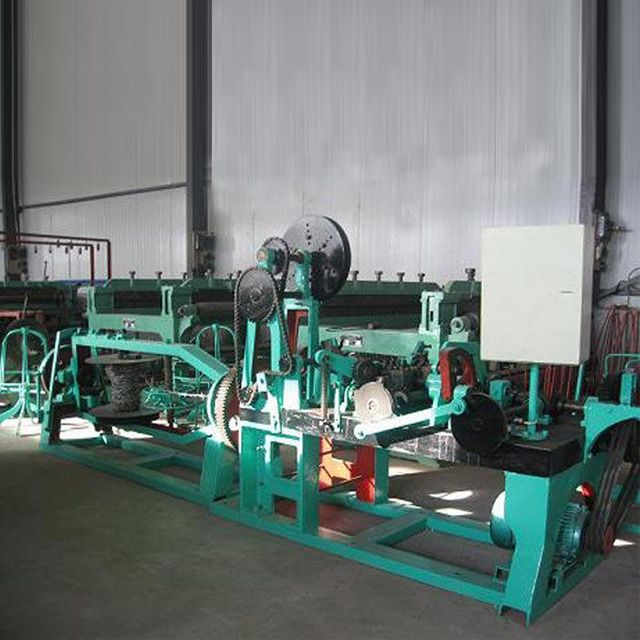

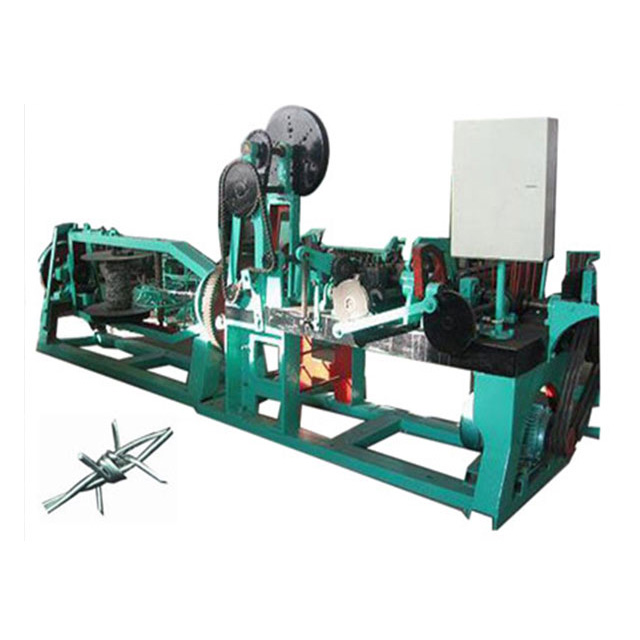

Barbed Wire Machine

Barbed wire machine can be divided into three types of machine, they are normal double twisted barbed wire machine, single twisted barbed wire machine, normal and reverse barbed wire machine.

  • Barbed Wire Machine
  • TIANYUE
  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Barbed wire machine can be divided into three types of machine, they are normal double twisted barbed wire machine, single twisted barbed wire machine, normal and reverse barbed wire machine.

Normal double twisted barbed wire making machine
Main Parameter:
motor:3kw
rated output:80kg-120kg/h
weight:1500kg
overall dimension:1900*1300*980mm
wire collection part size:1800*750*750mm
barb pitch spacing :3''-6''
strand diameter:1.8-3.0mm
wire diameter:1.7-2.8mm
Rotating speed of drive shaft:432r/min

Single twist barbed wire making machine
Main Parameter:
motor:2.2kw
rated output:50kg-60kg/h
weight:1200kg
overall dimension:1900*1300*980mm
wire collection part size:1300*800*750mm
barb pitch spacing :3''-6''
strand diameter:1.6-2.6mm
wire diameter:1.6-2.2mm
Rotating speed of drive shaft:357r/min

Normal and reverse barbed wire making  machine
Main Parameter:
motor:2.2kw
rated output:40kg/h
weight:1200kg
overall dimension:1900*1300*980mm
wire collection part size:1300*800*700mm
barb pitch spacing :3''-6''
strand diameter:1.5-2.8mm
wire diameter:1.5-2.6mm
Rotating speed of drive shaft:357r/min
Barbed Wire Machine

Barbed Wire Machine
