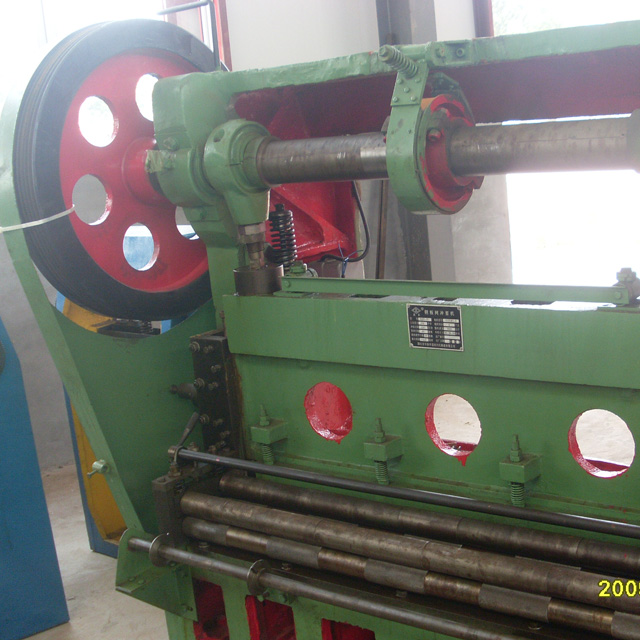

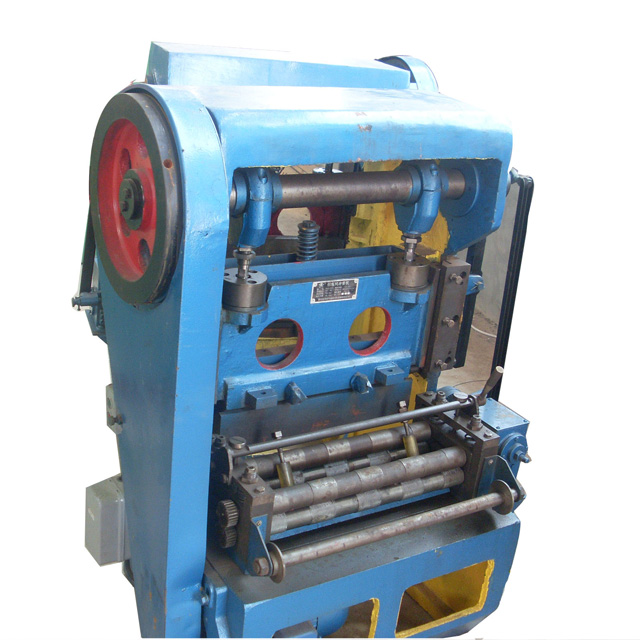

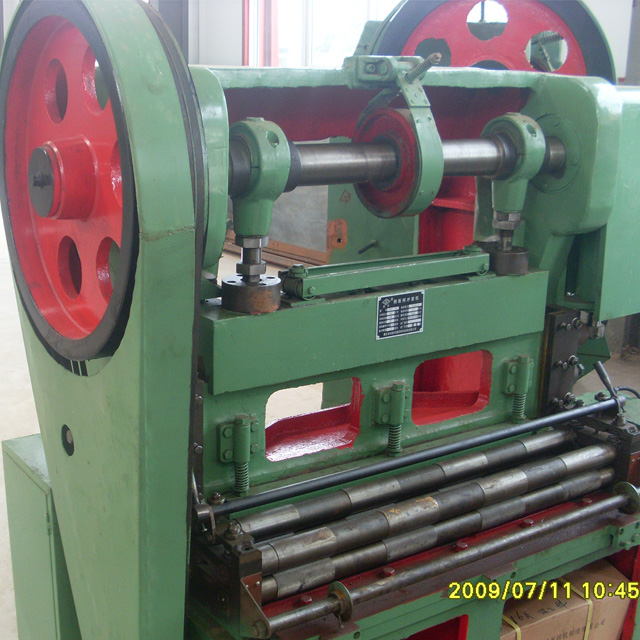

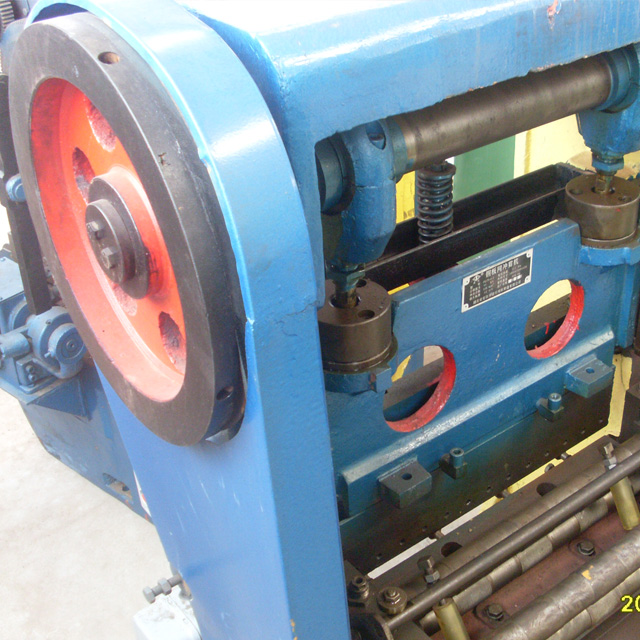

Expanded Metal Sheet Machine

Expanded Metal Sheet Machine. Our company is a reckoned Manufacturer, Supplier and Exporter of Expanded Metal Sheet Machine.

  • Expanded Metal Sheet Machine
  • TIANYUE
  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Our Expanded Metal Sheet Machine is practical with high-tech. It can not only produce steel plate net, and aluminum plate net, but can also produce aluminum material, copper network and other materials plate network, including ordinary diamond-shaped network ,which thickness is below 8mm.

This type of expanded mesh panel is widely used in such areas as mechanical, electrical, electronics, hardware, field of protection etc.

Specification:

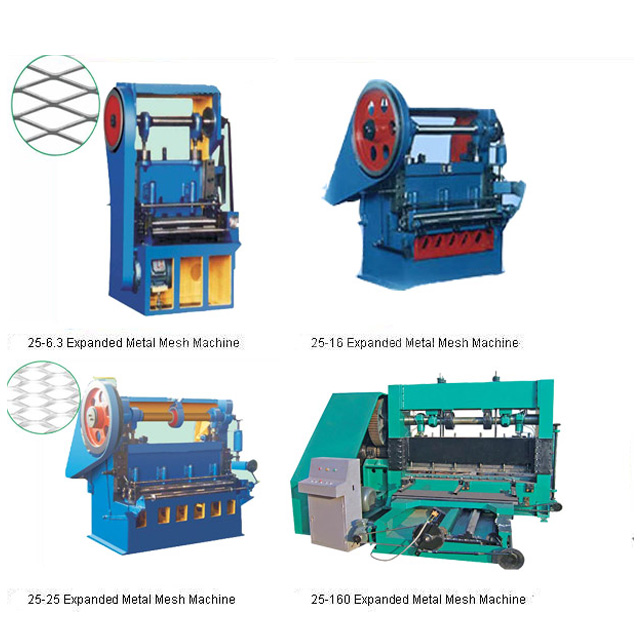

TYPE SH25-6.3 SH25-16 SH25-25 SH25-63A SH25-63B SH25-160A SH25-160B
DEPTH =1.0mm =1.0mm =1.5mm =2.5mm =3mm =6mm =6mm
WIDTH 500mm 1000mm 1250mm 2000mm 2000mm 2500mm 2500mm
TIMES 180/min 150/min 150/min 70/min 45/min 70/min 20/min
DISTANCE 0-1.15mm 0-1.2mm 0-1.2mm 0-4mm 0-4mm 0-7mm 0-7mm
LENGTH OF MESH =20mm =25mm =30mm =100mm =200mm =250mm =250mm
MOTOR 2.2KW 3KW 4KW 11KW 11KW 22KW 22KW
WEIGHT 0.95T 2T 3T 10T 10T 18T 20T
MEASUREMEENT 950 *570 *1780 1800 *1320 *1550 1940 *1600 *2010 2400 *3500 *2300 2400 *3500 *2300 5500 *1750 *3300 5500 *1750 *3300

Expanded Metal Sheet Machine
