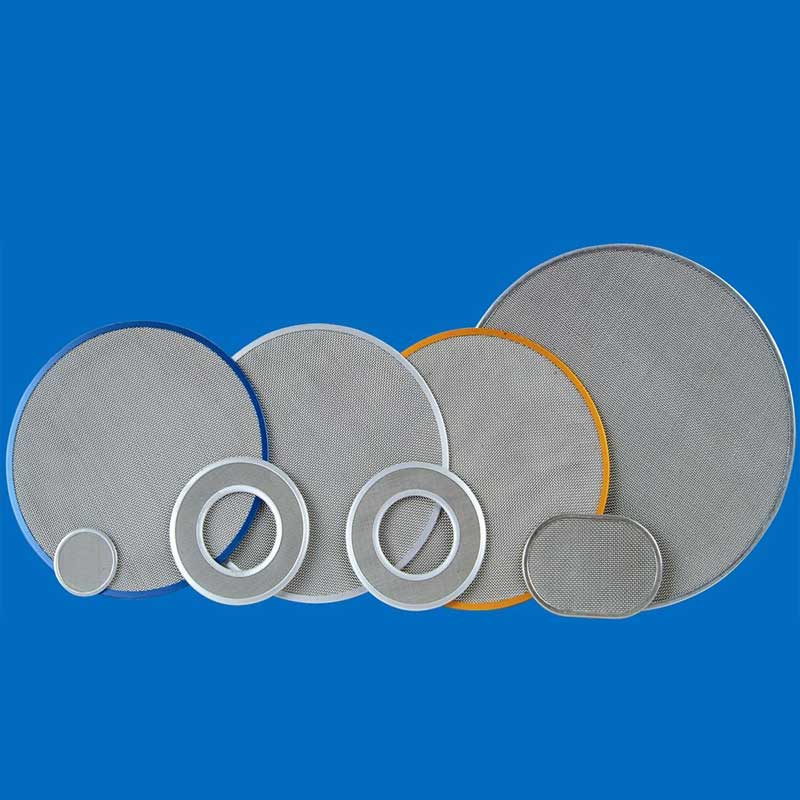

Filter Disc

Filter mesh disc Types:

Wire mesh disc filters:

Disc filters single layer;

Disc filters multi-layered.


Filter mesh disc specification:

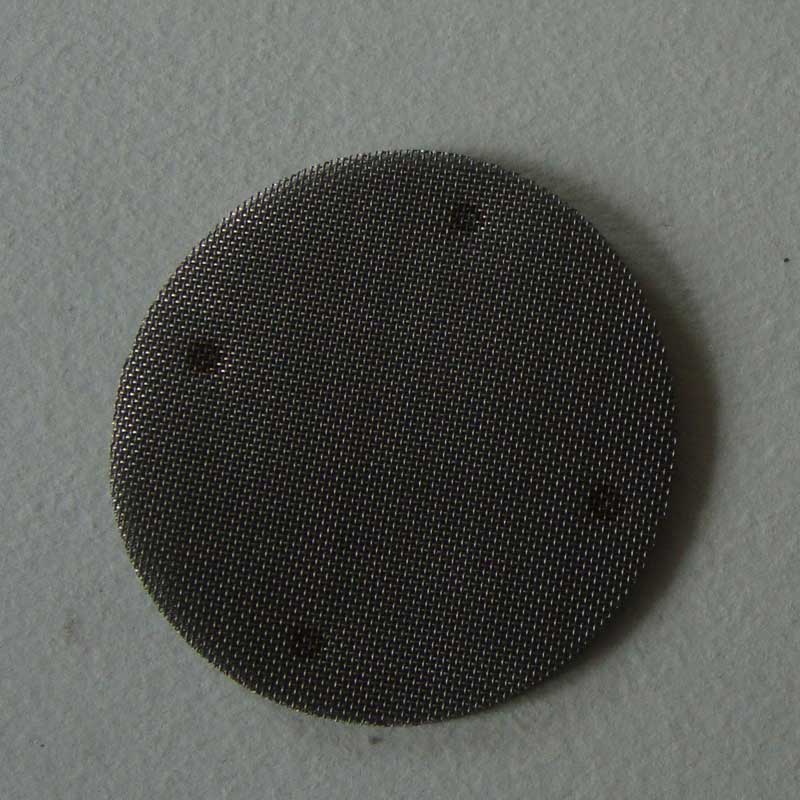

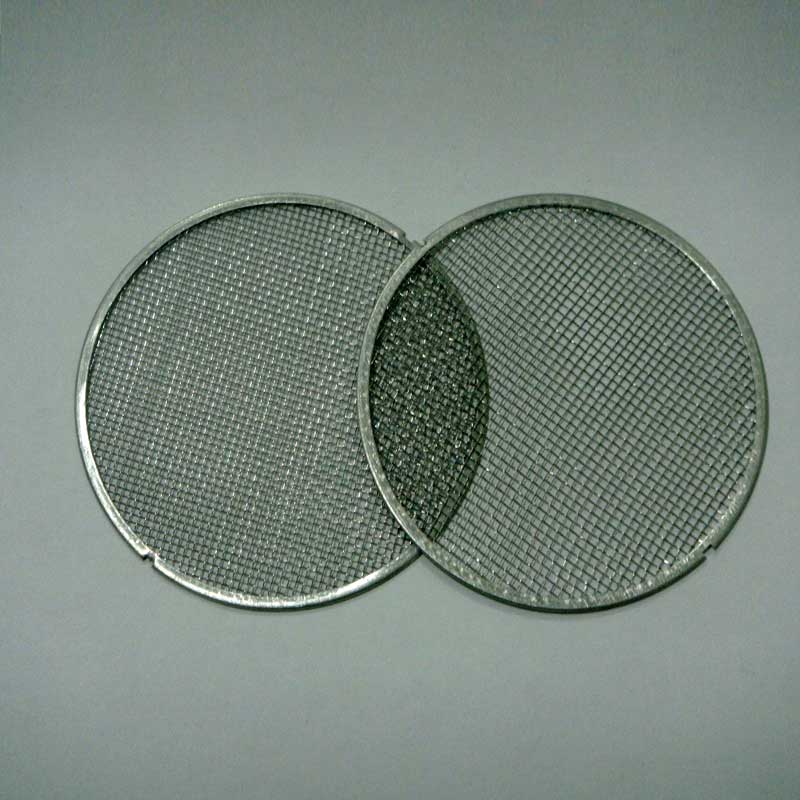

Round shape

diameter 44 to 600mm

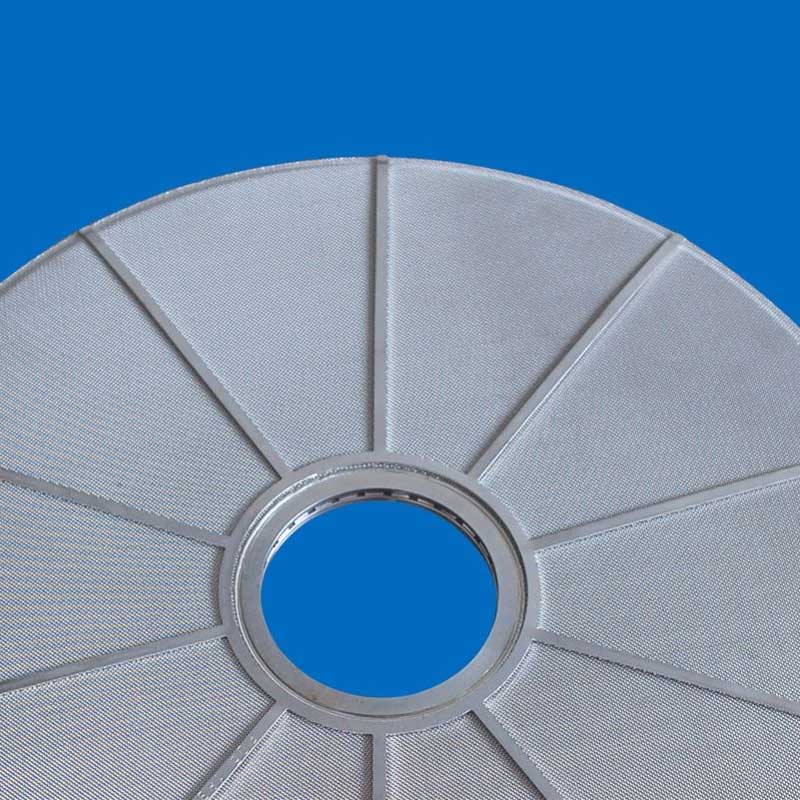

toroidal shape

inner diameter 18mm to 250mm,  outer diameter 50-350mm

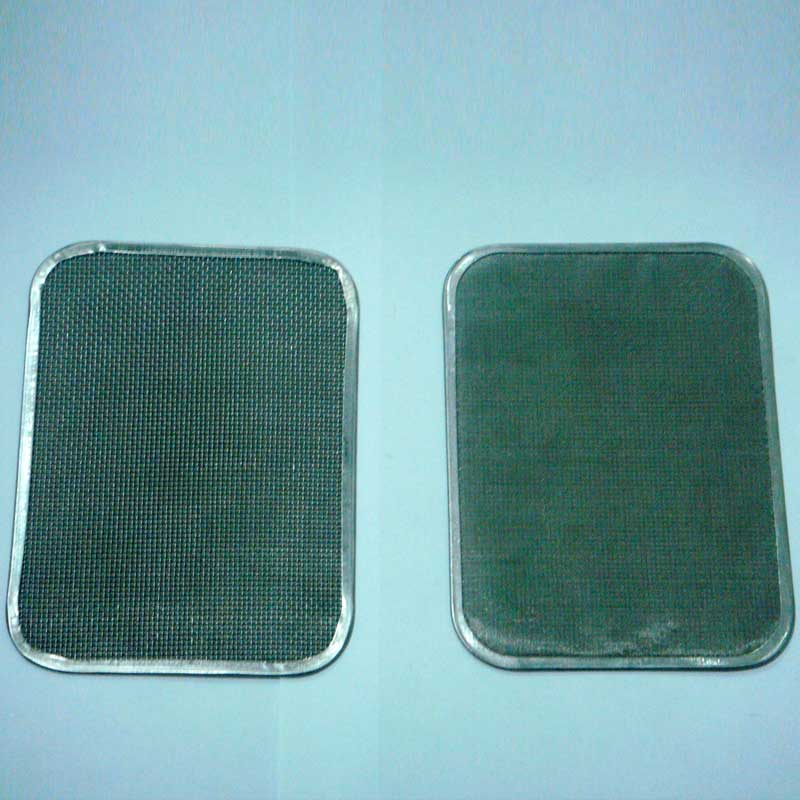

rectangular shape

width 50mm to 100mm, length 60mm to 400mm

filter mesh disc benefits

It is high quality and filtration capacity , precise fitting filter elements,  optimum cost-performance ratio , constant quality control during production etc. It is widely used in melt filtration.



Filter mesh disc material:

stainless steel filter disc,copper mesh filter disc,steel mesh filter disc.

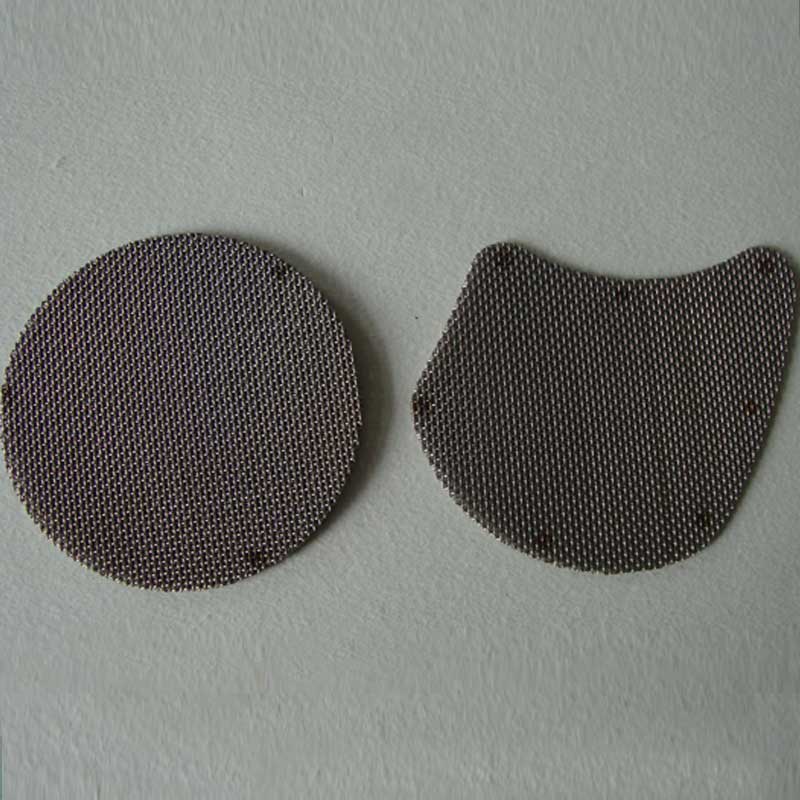

Filter mesh disc Shapes: Filter Discs have different forms, like round, square, oval and can be made according to customer's requirements.

Filter mesh disc Material: Black iron, stainless steel, brass, etc. Fineness of filter mesh disc: from
2mesh to 2800mesh.

Filter disc packing:

packed in plastic film, outside is wooden cases.


Screen filter disc feature :

1.good filter performance,Can play a uniform surface filtration performance to particle size of 2-200um;

2.Good corrosion resistance, heat resistance, pressure resistance, abrasion resistance;

3.Pore uniformity, and the precise filtration accuracy;

4.Unit area of the large flow;

5. applicable to low temperature, high temperature environment;

6.Repeat use after cleaning,free replacement.
