Gabions Mesh

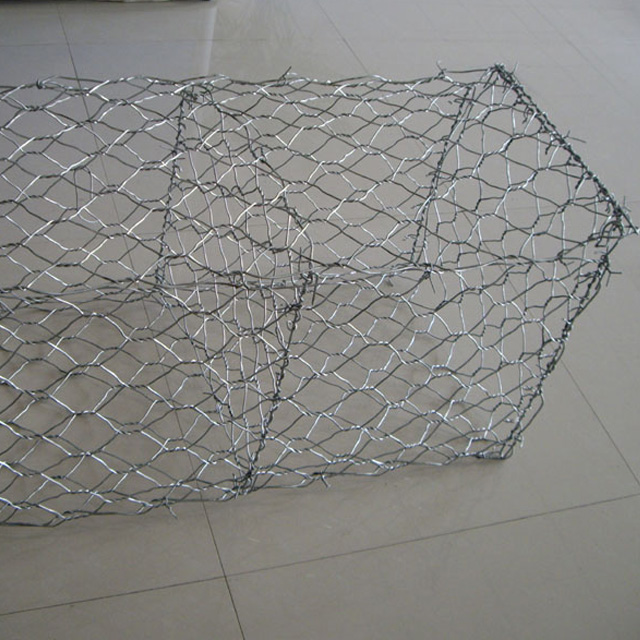

Gabion basket  is made of hexagonal wire netting.


Hexagonal wire netting is also known by the name of chicken mesh, hexagonal wire mesh.


Wire materials: Hexagonal wire mesh is manufactured in galvanized iron or PVC coated wire.

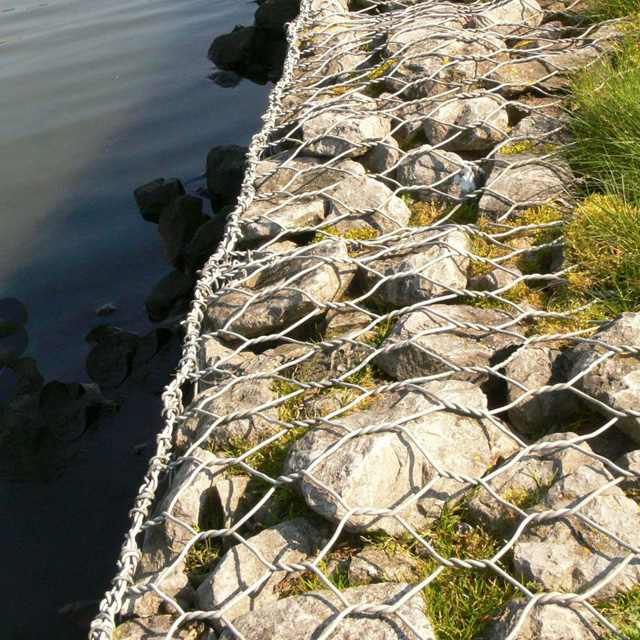

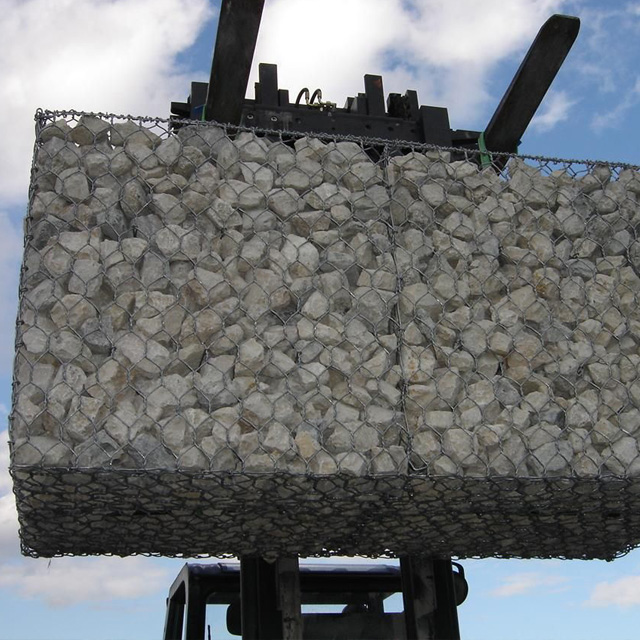

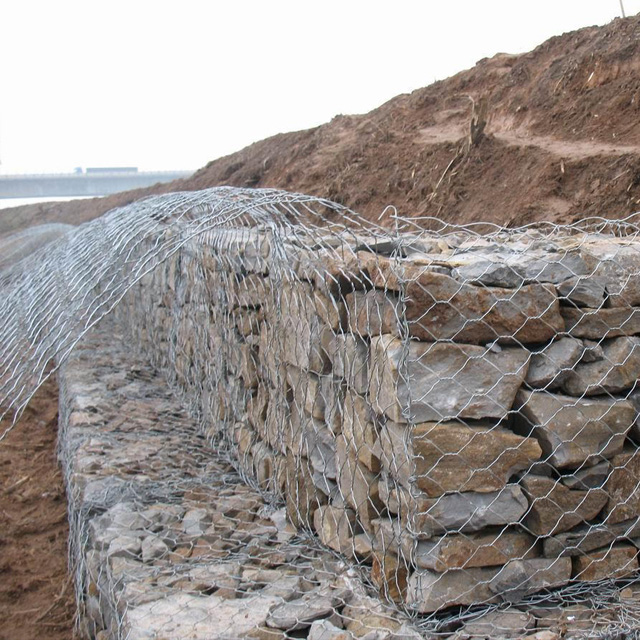

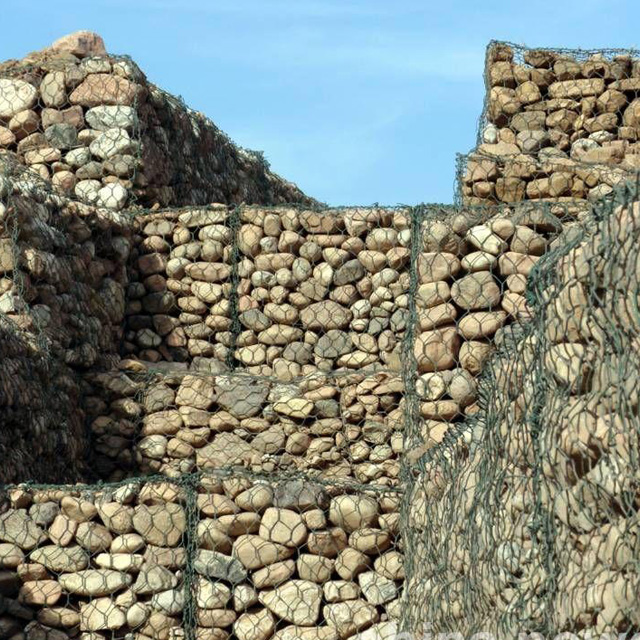

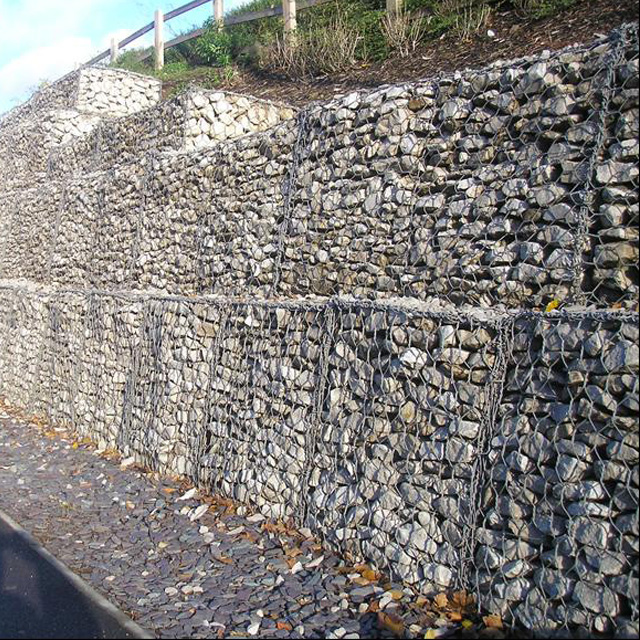

Application: Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

Galvanized hexagonal wire netting
mesh			Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16
