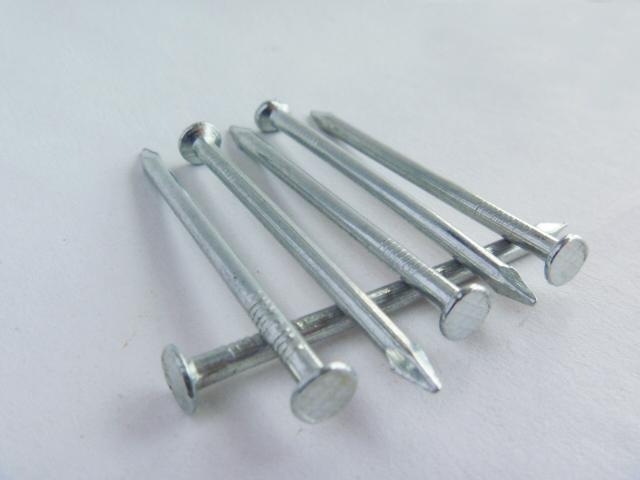

Galvanized concrete nail
Specifications
Material: Q195/Q235
Surface Treatment: Bright, E. G, HDG, V. C, C. C, P. C and so on
Head: Flat Head
Shank: Smooth/Annular/Spiral Thread
Point: Diamond Point
Packing Details: 1)20-25kgs/CTN, 2)50lb/CTN, 3)30lb/Bucket, 4)5kgs/Box, 4)1kg/Bag etc.
| Length | Gauge | ||
| (Inches) | (mm) | (B.W.G.) | |
| 3/8 | 9.525 | 19/20 | |
| 1/2 | 12.700 | 20/19/18 | |
| 5/8 | 15.875 | 19/18/17 | |
| 3/4 | 19.050 | 19/18/17 | |
| 7/8 | 22.225 | 18/17 | |
| 1 | 25.400 | 17/16/15/14 | |
| 1-1/4 | 31.749 | 16/15/14 | |
| 1-1/2 | 38.099 | 15/14/13 | |
| 1-3/4 | 44.440 | 14/13 | |
| 2 | 50.800 | 14/13/12/11/10 | |
| 2-1/2 | 63.499 | 13/12/11/10 | |
| 3 | 76.200 | 12/11/10/9/8 | |
| 3-1/2 | 88.900 | 11/10/9/8/7 | |
| 4 | 101.600 | 9/8/7/6/5 | |
| 4-1/2 | 114.300 | 7/6/5 | |
| 5 | 127.000 | 6/5/4 | |
| 6 | 152.400 | 6/5/4 | |
| 7 | 177.800 | 5/4 | |
