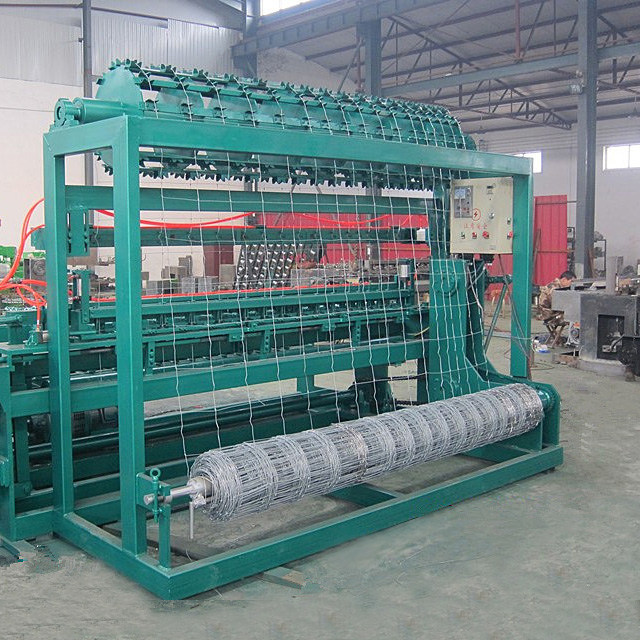

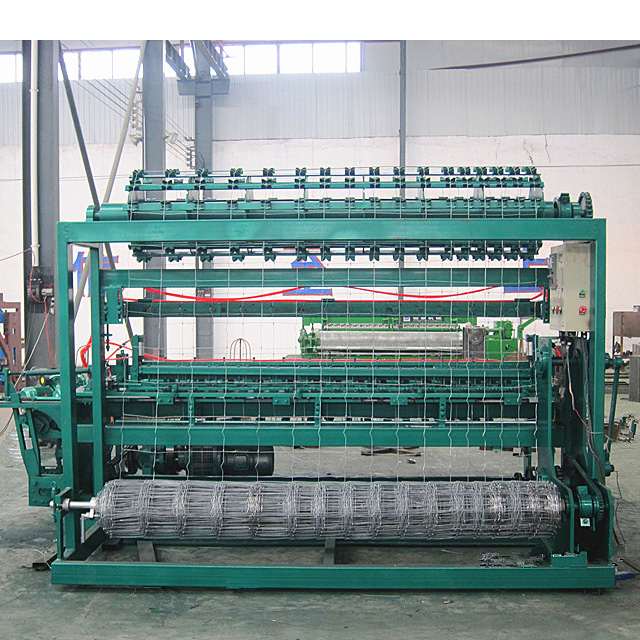

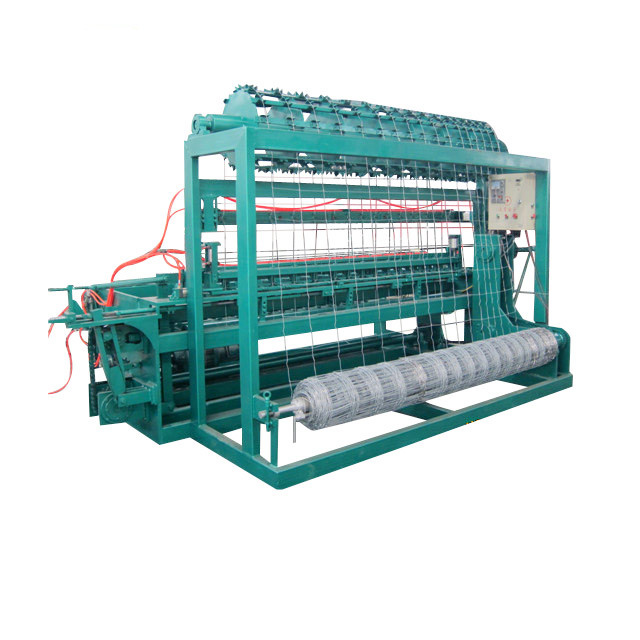

Grassland Fence Machine

This machine is a new model equipment designed by our company. Can automatically weave the weft wire and warp wire together.

  • Grassland Fence Machine

  • TIANYUE

  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Inquire Add to Basket

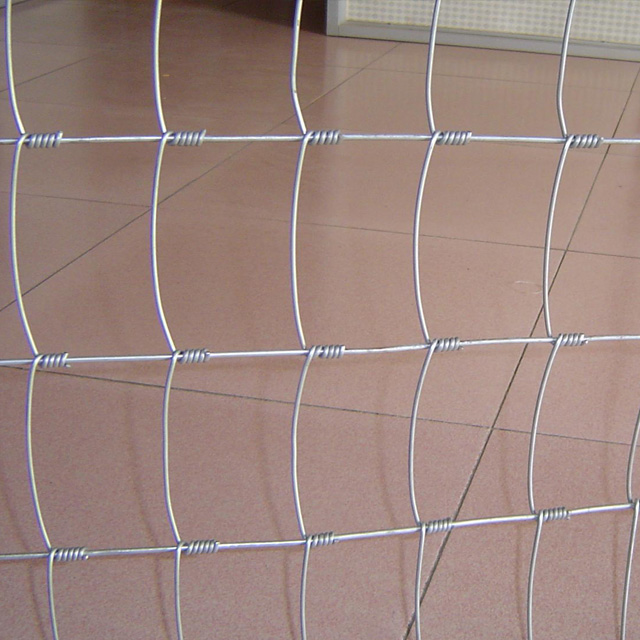

This machine is a new model equipment designed by our company. Can automatically weave the weft wire and warp wire together. The grassland fence produced has the features of innovative structure, firmness, precision and reliable property. The productive capacity can be 150m/h.

Specification:

No. Specification mesh Gross Weight
(kg)		 Set and bottom wire Diameter
(mm)		 In wire
Diameter
(mm)		 Volume diameter (mm)
Type Specification
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 270
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0 270
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 270
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.0 270
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 270
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0 270
7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0 270
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0 270
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 270
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 270
