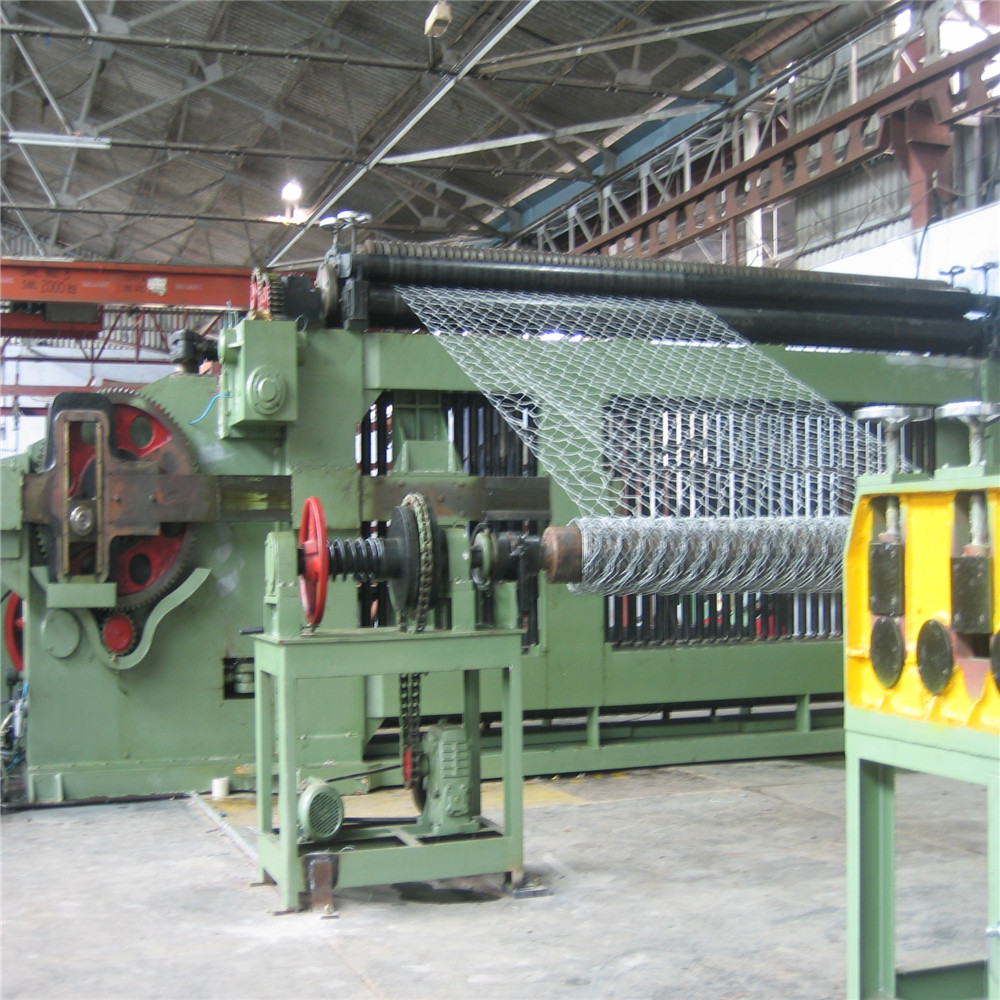

Hexagonal Wire Netting Machine

Hexagonal wire netting weaving machines adopt straight-reverse twisted principle, do not need to make the iron wire into spring type.
  • Hexagonal Wire Netting Machine

  • TIANYUE

  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Hexagonal wire netting weaving machines adopt straight-reverse twisted principle, do not need to make the iron wire into spring type, so work efficiency is increased so that can work continuously. The models such as 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80x100mm or at the customers’ requirement.

Characteristics:
1. Max. speed can be 65 mesh per minute, speed can be adjusted with different raw materials.
2. Smooth operation, low noise. It will give an alarm at broken wire, broken mesh or at preset length.
3. Big width. It can weave double 1.25 m or single 2.5 m width.
4. Even and flat openings, wire can be added at any spot when weaving.
5. It has clutch brake device, can move by spot, flexible operation and has no high demand for operating personnel.
6. Reliable lubrication and convenient use.
7. Durable and strong, convenient maintenance.

Specification:
Type Mesh opening Max. width (mm) Woven Max. wire Dia.(mm)
Single Wdth Double Width
XFHX-3/4" 19 2440 1200 1.2
XFHX-5/8" 16 2440 1200 1.2
XFHX-1/2" 13 2440 1200 1.2
XFHX-1" 27 2440 1200 1.2
XFHX-1 1/4"" 32 2440 1200 1.2
XFHX-1 1/2" 44 2440 1200 1.4
XFHX-2" 56 2440 1200 1.4
XFHX-3" 76 2440 1200 1.8

Type Theoretic produce speed Outer size(mm) Gross weight(T)
Mesh/minute Meter/hour
XFHX-3/4" 38 62 4500x2200x1450 4.6
XFHX-5/8" 38 62 4500x2200x1450 4.6
XFHX-1/2" 38 62 4500x2200x1450 4.6
XFHX-1" 38 62 4500x2200x1450 4.6
XFHX-1 1/4"" 38 66 4500x2200x1450 4.6
XFHX-1 1/2" 38 99 4500x2200x1450 4.6
XFHX-2" 38 131 4500x2200x1450 4.6
XFHX-3" 38 169 4500x2200x1450 4.6

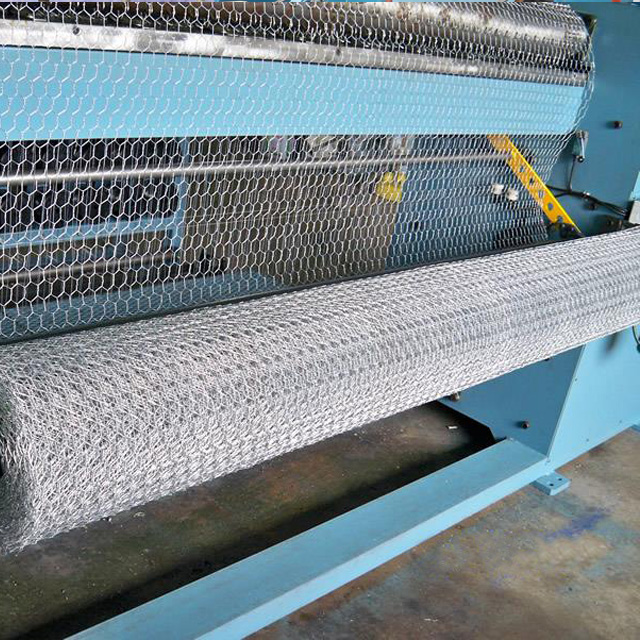

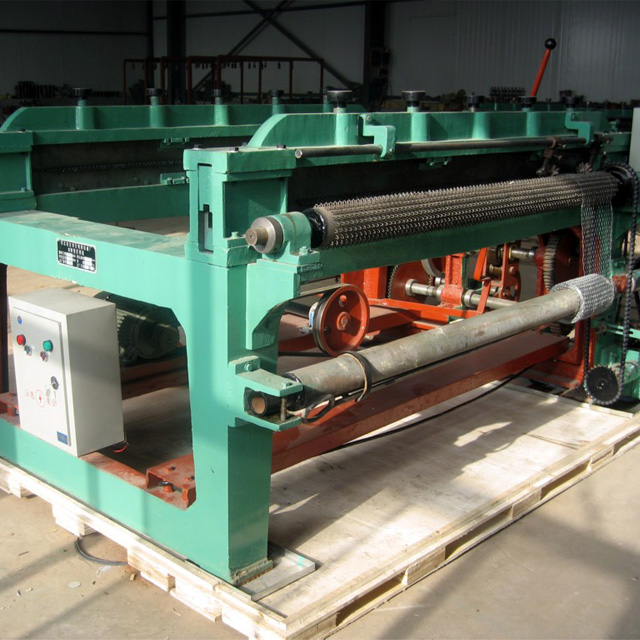

Hexagonal Wire Netting Machine

Hexagonal Wire Netting Machine
