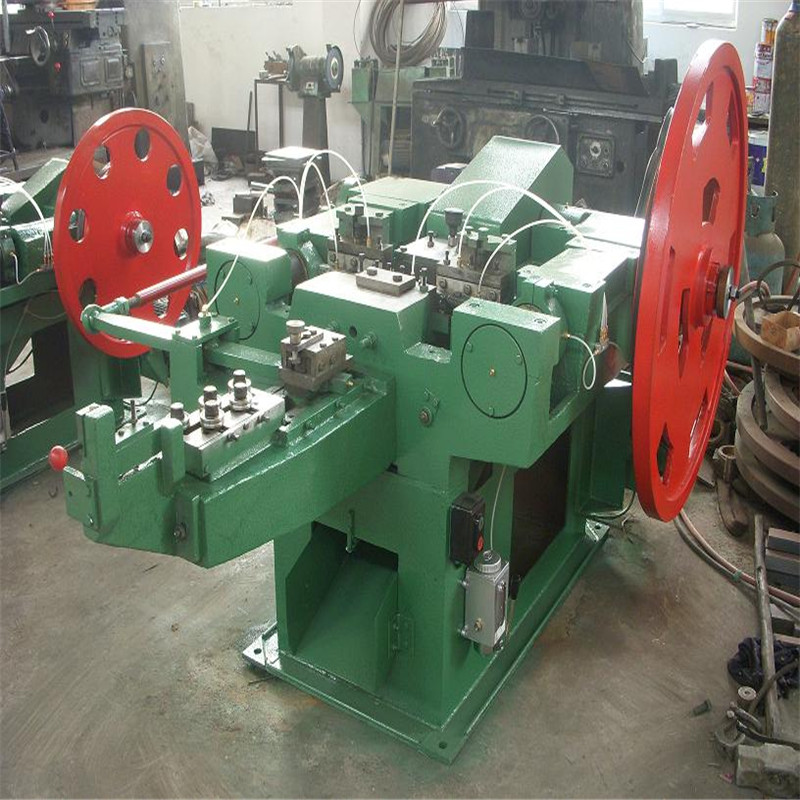

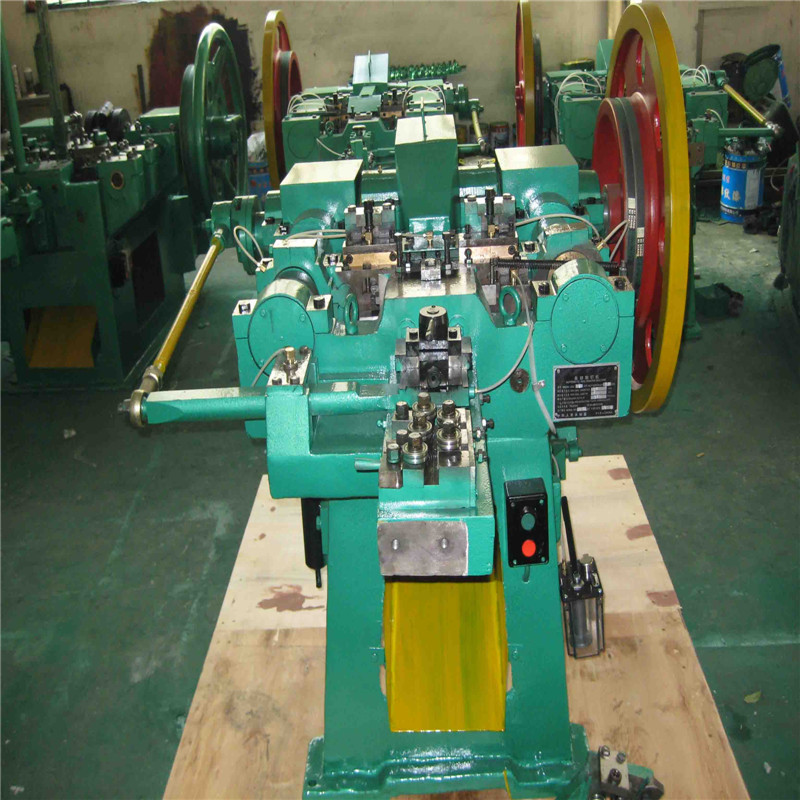

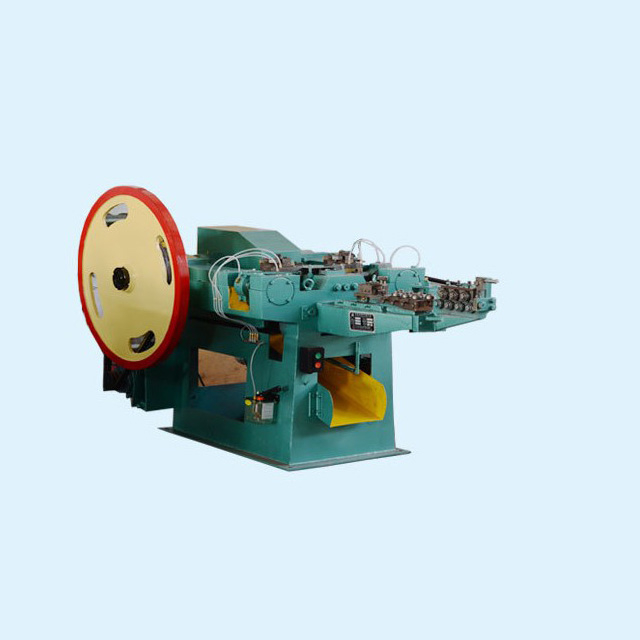

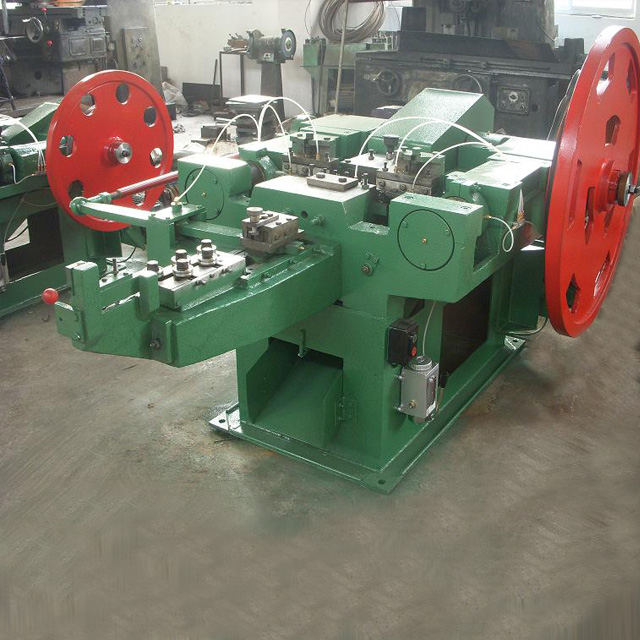

Nail Making Machine

Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.

  • Nail Making Machine
  • TIANYUE
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.
Both scrap and new wire steel can be used as material for common nail wire nail making machine.

Features:
1)The nail making machine has the features of small in size, easy to move, low noise, low power consumption, and it is easy to operate, just need to change different size mould for making different diameter nails, if you want to make different lengths of nails for same diameter, no need to change anything.
2)The nail making machines can feed the materials automatically, and making nail body straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.
3)The main components (shaft, cams and gear) of nail machine are made of high quality steel, and durable in use,has good stability.

Specification:
Type 1.6C 2.8C 3.4C 4.5C 5.5C 6.5C Unit
Diameter 0.9—1.8 1.2---2.8 1.8---3.4 2.8---4.5 3.4---5.5 4---6.5 MM
Length 9----30 16----50 30----75 50----100 75----155 100----180 MM
Output 480 320 300 280 180 150 Pcs/min
Power 1.5 2.2 3.0 4.0 5.5 7.5 KW
Floor space 1000x750x1000 1550x1000x1065 1970x1200x1200 2436x1512x1205 2510x1540x1815 3510x1940x2015 mm

Nail Making Machine

Nail Making Machine
