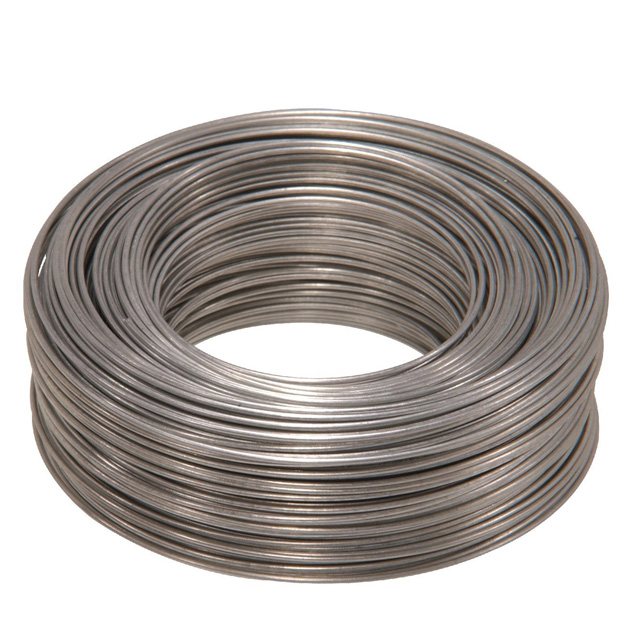

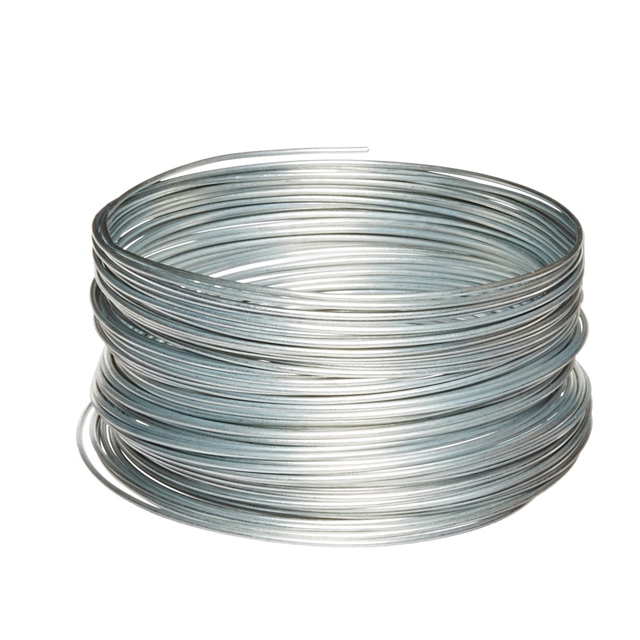

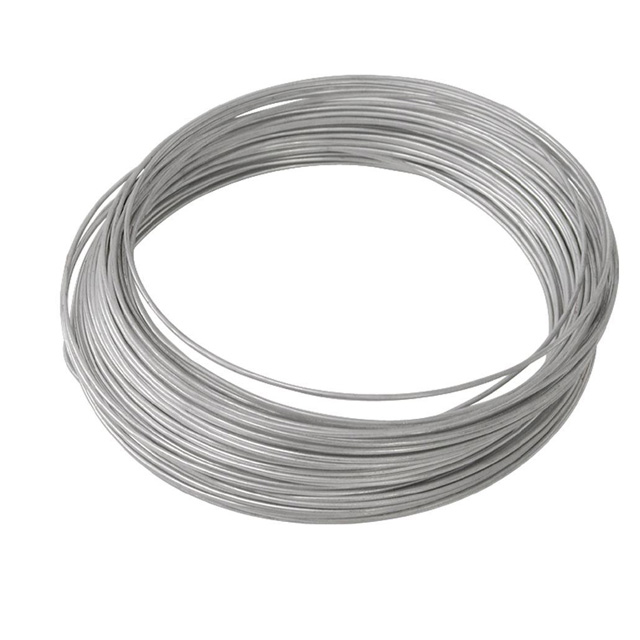

Oval Wire

Materials for galvanized wire: Carbon steel wire, mild steel wire.
  • Oval Wire

  • TIANYUE

  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
1. Materials for galvanized wire: Carbon steel wire, mild steel wire.

2. Wire diameter of galvanized wire: 2.2x2.7,2.0x2.4,2.7x3.0 We also offer thinner wire down to BWG5# or up to BWG28# upon customers specific order.

3. Zinc coated of galvanized wire: 70g/m 2.

4. Tensile strength of galvanized wire: 1300-1400 N/mm 2

5. Coil weight of galvanized wire: 45kg/coil.

6. Packing of galvanized wire:  inside and hessian outside/ weave outside.

7. HS Code of galvanized wire : 7217200000.

8. Advantages of galvanized wire: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.

9. Applications og galvanized wire: This kind of industrial wire is mainly used in construction, making of wire nails and wire ropes, express way fencing, binding of flowers and wire mesh weaving.

10. Delivery time: 25 days after receiving the formal contract.

Specification:

Presentation Coil Weight Diameter Minimum breaking stress Zinc Coating
m/coil kg mm KGF g/m2
1000 43 3,0 - 2,4 800 80-100
Presentation Coil Weight Diameter Minimum breaking stress Zinc Coating
m/coil kg mm KGF g/m2
1000 43 3,0 - 2,4 725 80-100
Presentation Coil Weight Diameter Minimum breaking stress Zinc Coating
m/coil kg mm KGF g/m2
600 43 3,9 - 3,0 1200 80-100
Presentation Coil Weight Diameter Minimum breaking stress Zinc Coating
m/coil kg mm KGF g/m2
1000 36 2,7 - 2,2 600 80-100
Presentation Coil Weight Diameter Minimum breaking stress Zinc Coating
m/coil kg mm KGF g/m2
1000 36 2,2 - 2,7 650 80-100
Other specification also available
