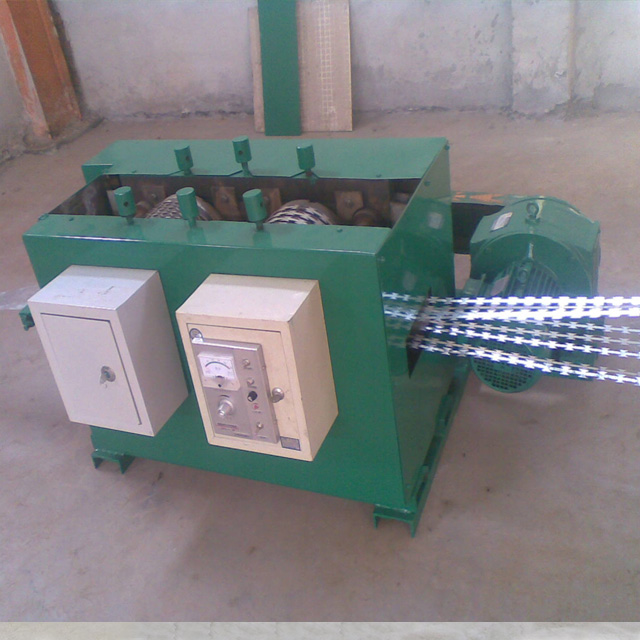

Tianyue Razor Wire Machine is composed of the main machine producing strip plates and the coiling machine that coils the wire into the strip plate. Using this type of razor barbed wire machine that can save you twenty percent of raw materials in production.
Razor barbed wire machine is light, easy to control, high efficient and the production is very significant.
The products that this machine produced enjoy the characteristics of compact structure, small size and easy to operate.
Applications:

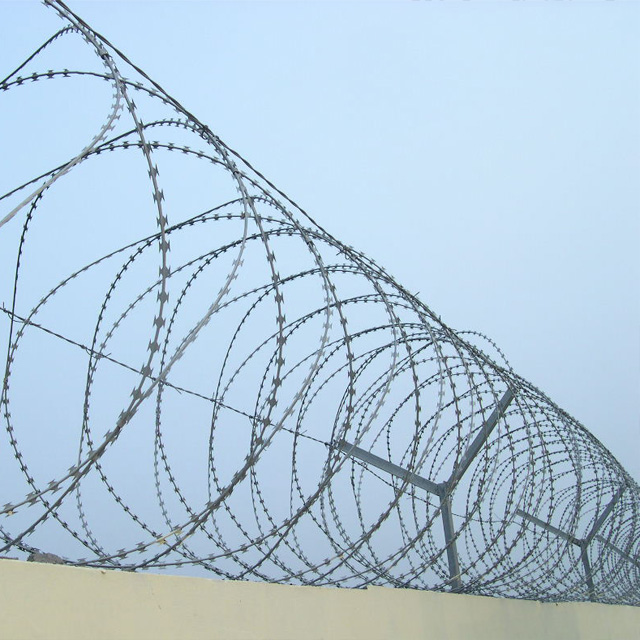

The products from this machine provided is widely used in military facilities, signal station, power transformer substation,frontier defense,residential area protection, school, factory , farm and so on.
Specification:
Coil Dia.(mm) | 500 | 700 | 960 | 450 |
Number of Circles | 56 | 72 | 52 | 33 |
Standard Covered Length (m) | 8-9 | 11-13 | 8-10 | 8 |
Maximal Covered Length | 12 | 15 | 13 | 12 |

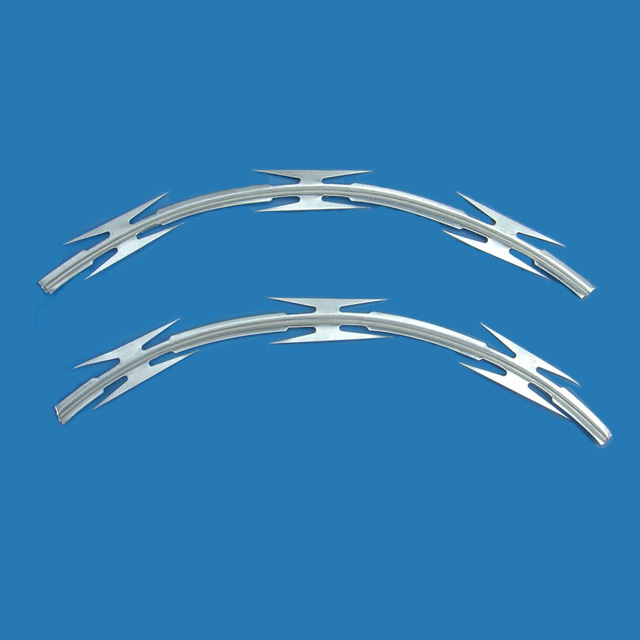

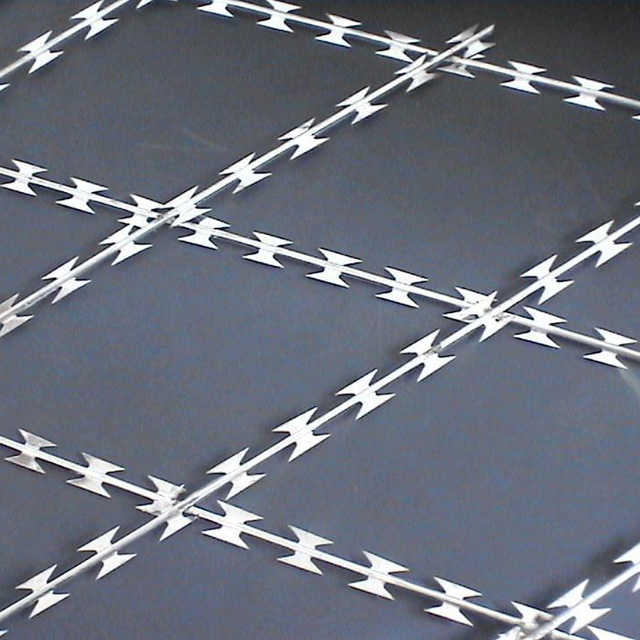

Specification | Thickness | Length | Width | Spece |
BTO-12 | 0.5±0.05 | 12±1 | 15±1 | 26±1 |
BTO-15 | 0.5±0.05 | 15±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 22±1 | 15±1 | 34±1 |
BTO-30 | 0.5±0.05 | 30 | 18 | 45±1 |
BTO-60 | 0.6±0.05 | 60±2 | 32±1 | 100±2 |
BTO65 | 0.6±0.05 | 65±2 | 21±1 | 100±2 |
