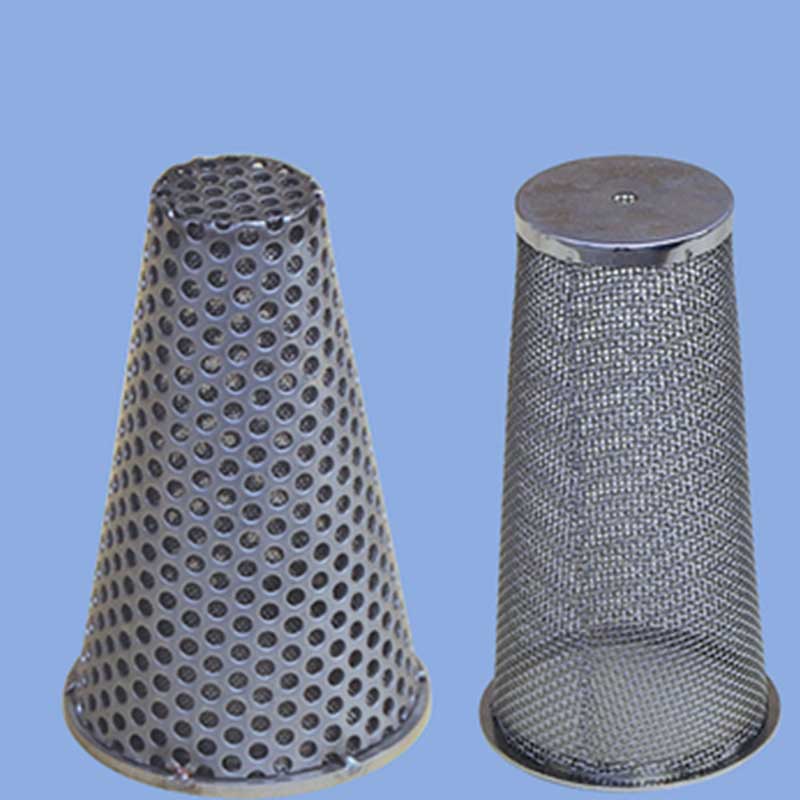

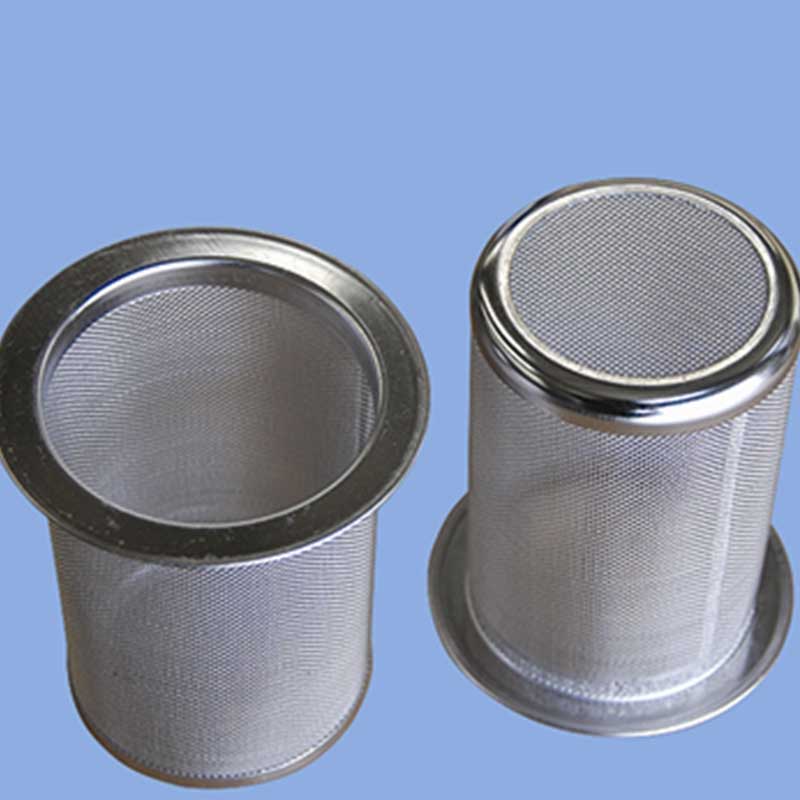

Screen Tube

Material: low carbon wire, low carbon galvanized steel wire, high manganese steel , stainless steel wire ss304, ss316, ss316L.

  • Screen Tube
  • TIANYUE
  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Material: low carbon wire, low carbon galvanized steel wire, high manganese steel , stainless steel wire ss304,ss316,ss316L.

Advantages:
Continuous slot: opening significantly increases the available open area, providing greater access to the water-bearing zone.
Non-clogging: "V" shaped or wedge shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and don't wedge in the screen's inwardly enlarging slot.
Large open area: this allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.

Specification (Profile wire):
Width (mm): 1.50 1.80 2.30 2.50 1.80 3.00 3.70 3.30
Height (mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width (mm): 2.30 2.70 3.00 3.70 3.30
Height (mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 5.0mm
Note: other wires and rods available upon request
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also accept request.
Open area up to 60%.

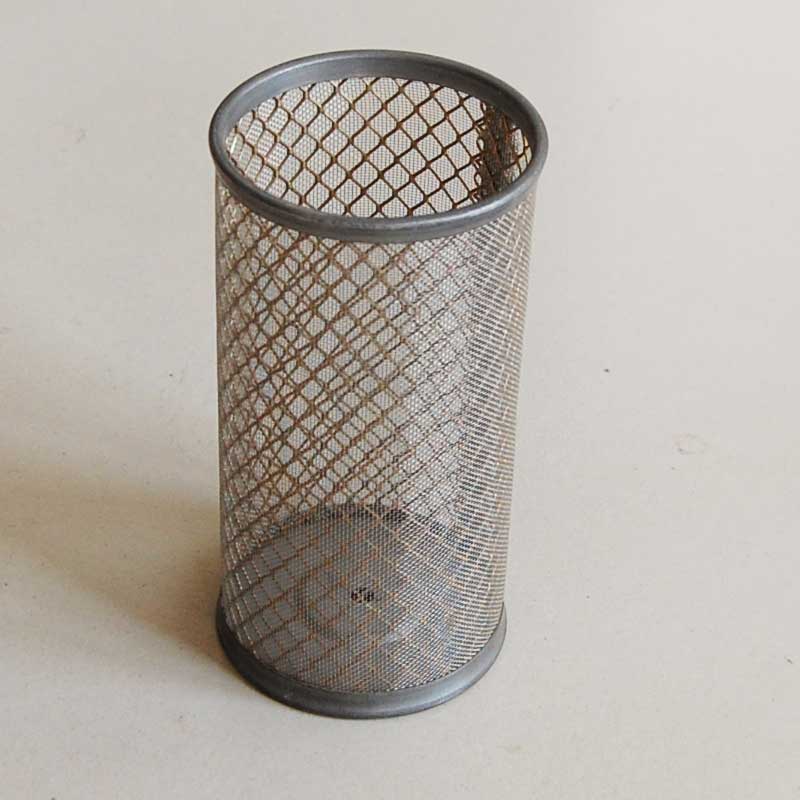

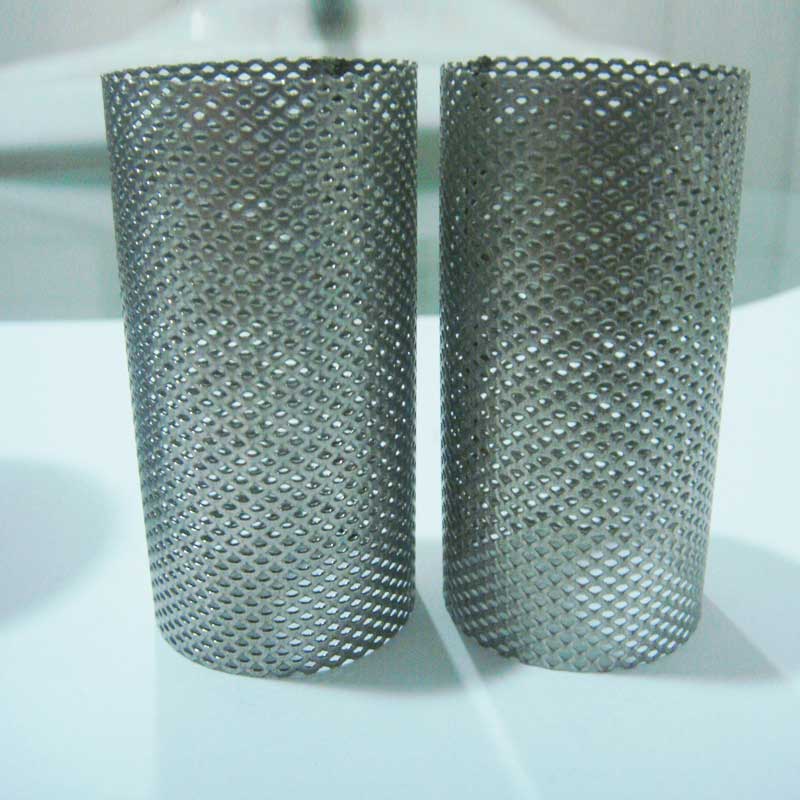

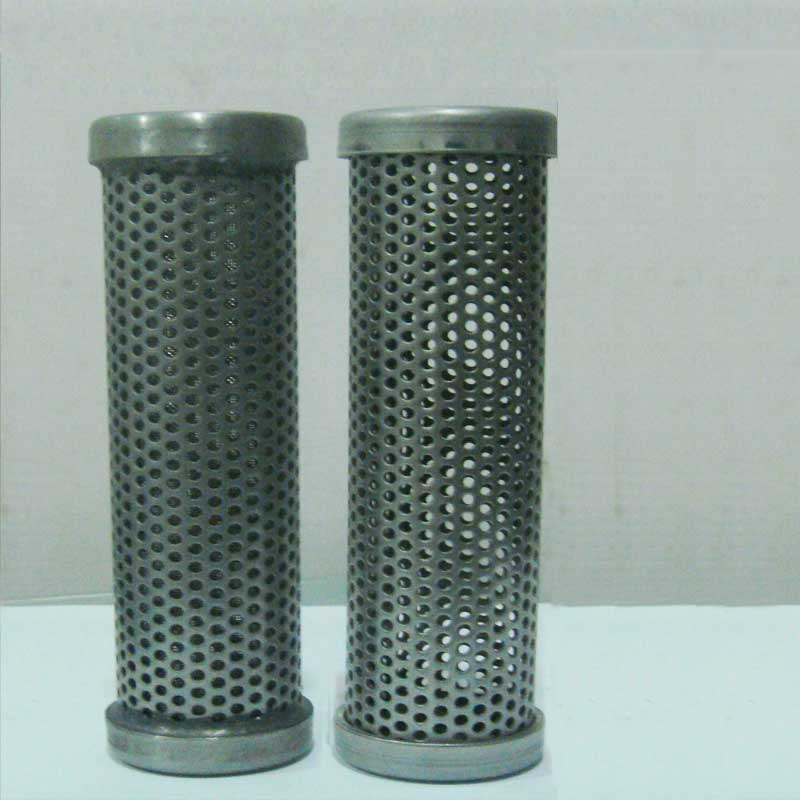

Screen Tube Screen Tube
