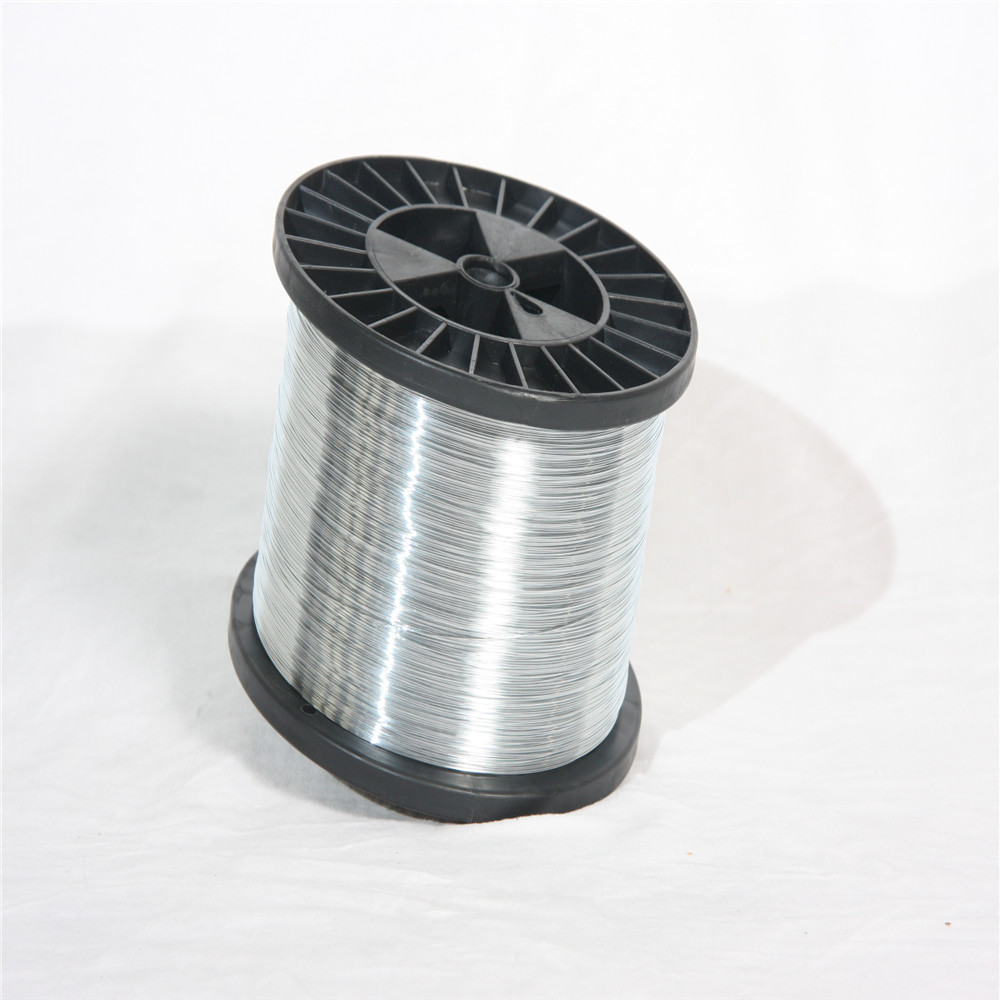

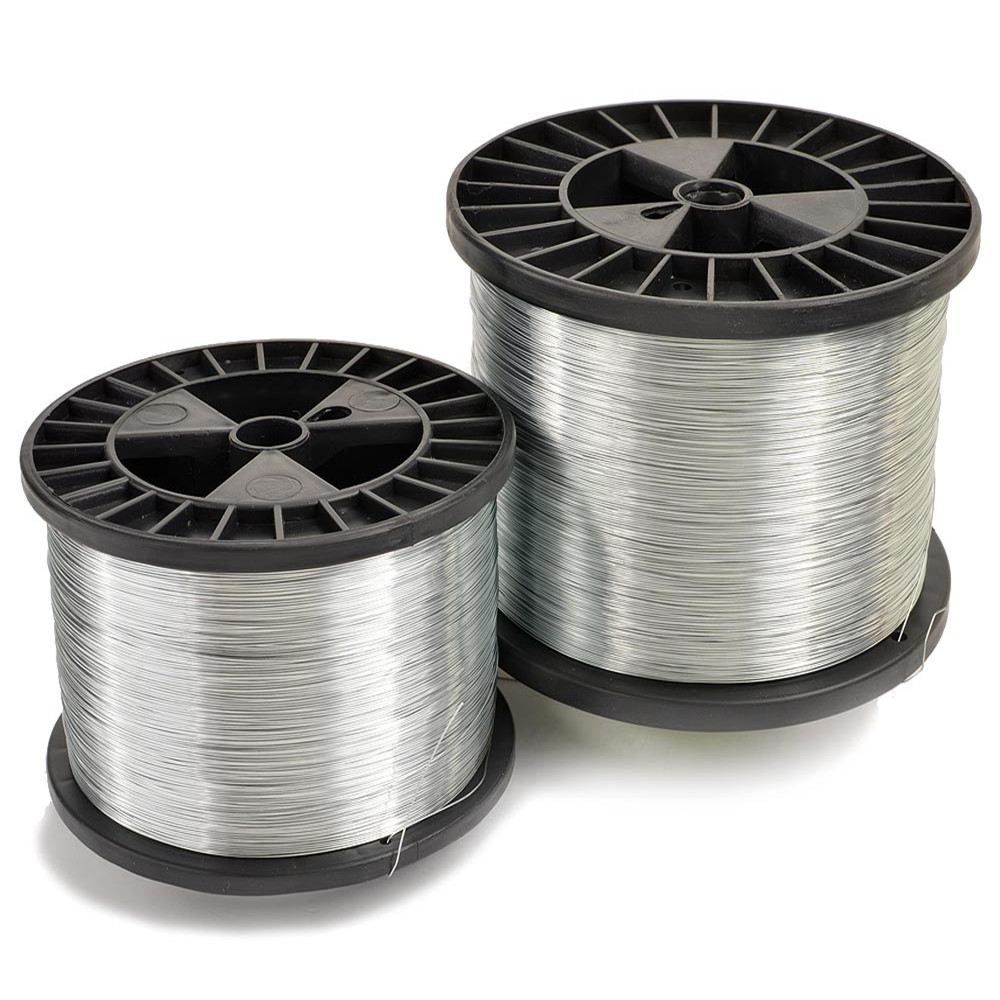

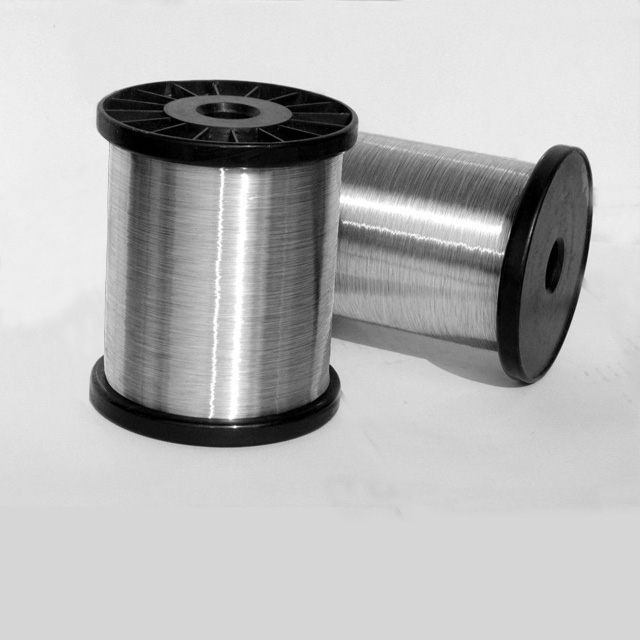

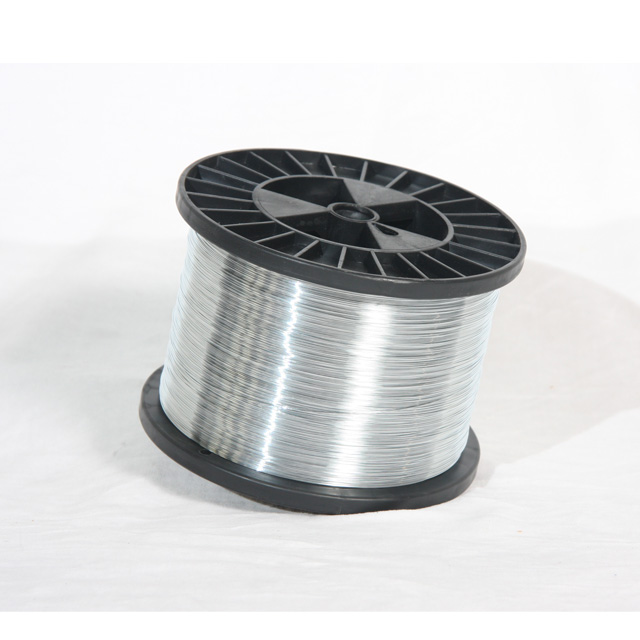

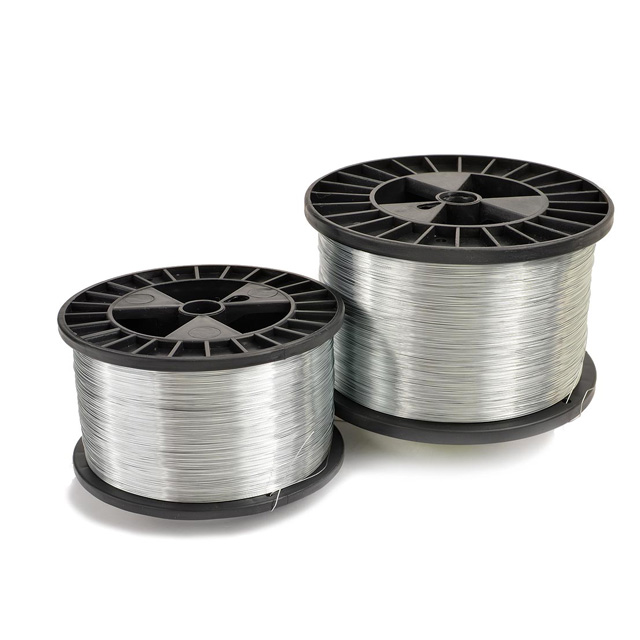

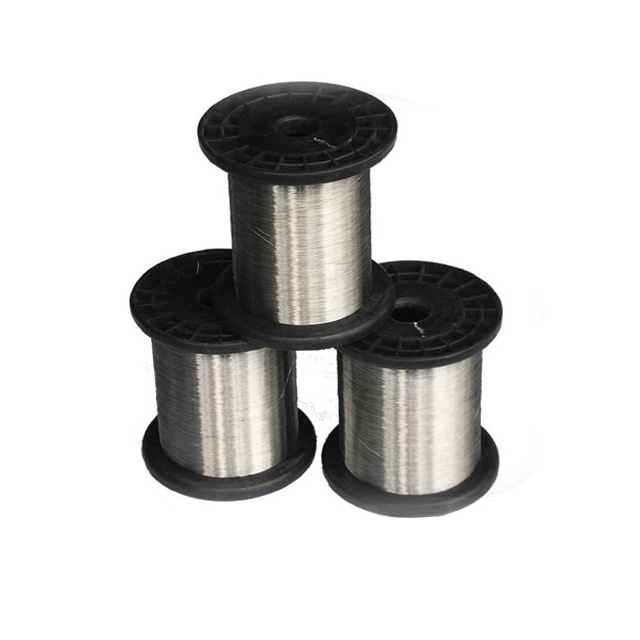

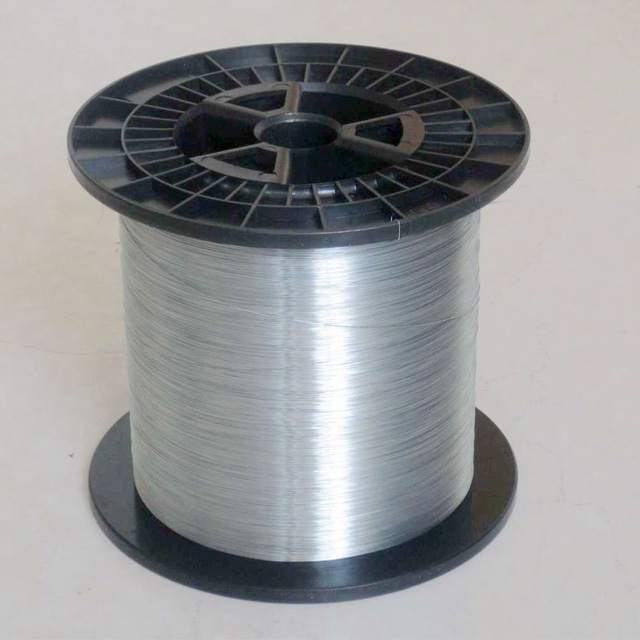

Spool Wire
TIANYUE
Quantity: | |
---|---|
Application | Weaving, braiding, fencing, cable armoring, knitting, tie wire, for redrawn, for binding or forming etc. |
Material | low carbon steel wire |
Diameter | 0.15mm~9.00mm |
Tensile strength | 350-540MPA, or higher |
Zinc coating | Min 12g/m2, min 25g/m2, min 200g/m2, |
Surface treatment | Hot dipped or electro galvanized |
Packing | On spools of DIN160, DIN200, DIN250, BB20, MP100 etc. In small coils of 25-50kg/coil, 10kg/coil or even 2-5kg/coil In rosette coil of 100-800kg/coil |
Standard | ASTM 641, EN10257-1& EN10244-2 |
Wire Diameter (mm) | Allowed Difference (mm) | Max. Diameter Difference (mm) |
0.020-0.049 | +0.002 -0.001 | 0.001 |
0.050-0.074 | ±0.002 | 0.002 |
0.075-0.089 | ±0.002 | 0.002 |
0.090-0.109 | +0.003 -0.002 | 0.002 |
0.110-0.169 | ±0.003 | 0.003 |
0.170-0.184 | ±0.004 | 0.004 |
0.185-0.199 | ±0.004 | 0.004 |
0.200-0.299 | ±0.005 | 0.005 |
0.300-0.310 | ±0.006 | 0.006 |
0.320-0.499 | ±0.006 | 0.006 |
