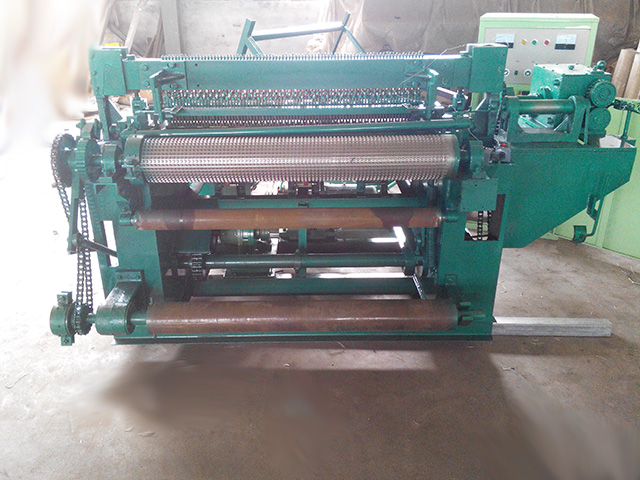

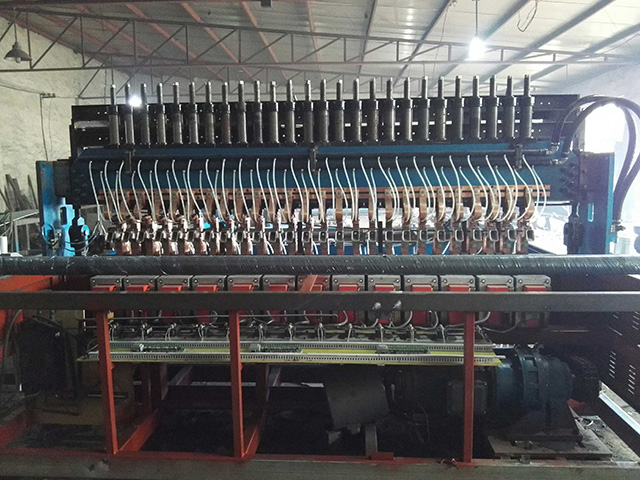

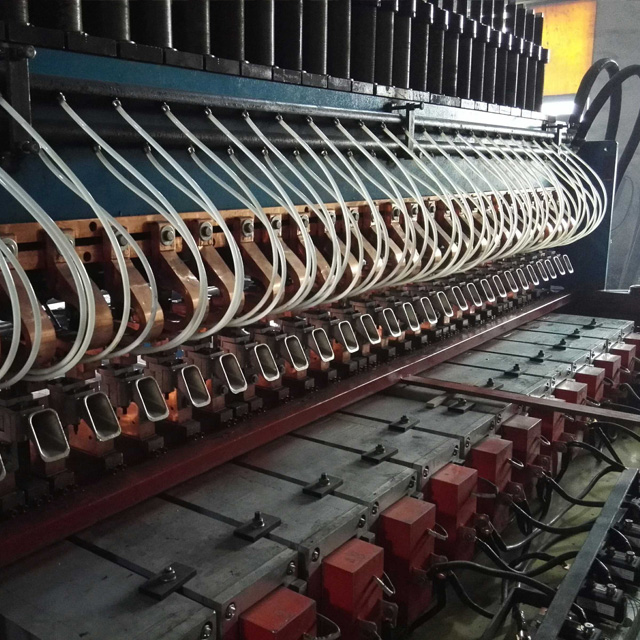

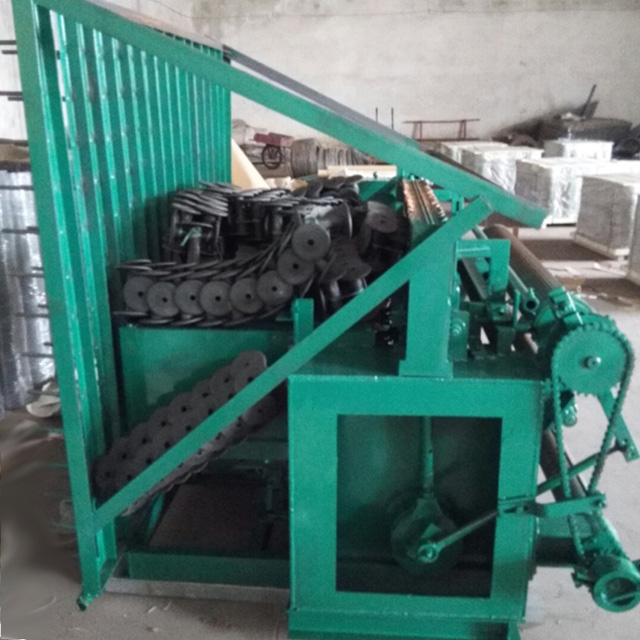

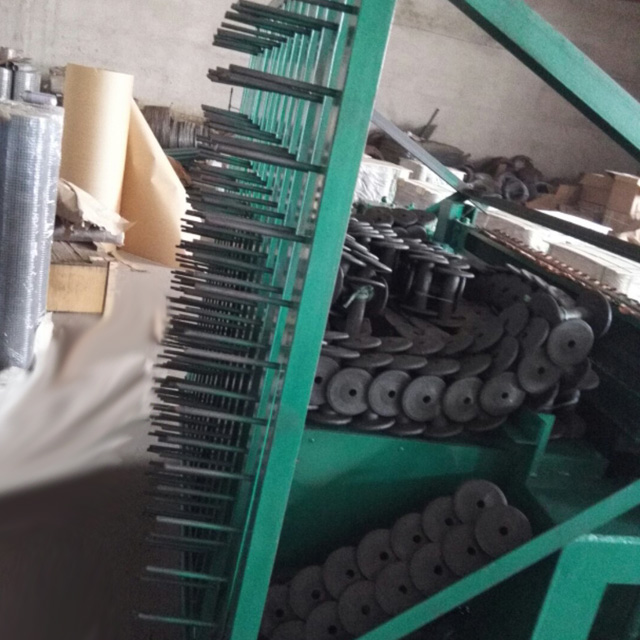

Welded Wire Mesh Machine

Welded wire mesh machine can be divided into welded roll mesh machine, welded wire mesh panel machine.

  • Welded Wire Mesh Machine
  • TIANYUE
  • Place of Origin: Hebei China(Mainland)
  • Company Certificate: ISO 9001:2002
  • Payment Terms: TT 30% , LC AT SIGHT, Usance LC, DP, OA
Quantity:
Welded wire mesh machine can be divided into welded roll mesh machine, welded wire mesh panel machine.

Main features:
(1) Integrative welding machine——controlled by PLC
(2) Do without cutting edge——save lots of material
(3) Adjustable of distance of line wires——input the distance of cross wires, any character can reach.
(4) Cross wires putting in device——better than before, having applying the patent.
(5) Adopt auto welding by software——reduce the demand for electricity and pollution of electricity grid.
(6) The welding pressure is even and identical——guarantees the high quality of all the welding spots.
(7) Wire feeding way: from coil wire.
(8) Electric motor: General motor, equipped with a frequency adjustable motor
(9) Panasonic Servo motor:adjustable of step distance, ≥25mm——Mesh drawing method
(10) Material:Suitable for low carbon iron wire, or galvanized (cold galvanized, hot galvanized) processing

Specification:
Welding wire diameter 3.0- 6.0(mm)
Welding mesh size 50*50-300*300(mm)
Welding width 2500(mm)
Speed of welding 60-70 /min
Nominal voltage 380v 3phase electric 50HZ
Nominal power 125KVA*8
Exterior size 3300*2300*1800mm
Weight of machine 4500(kg)
The specifications can be adjusted based on different requirements


Welded Wire Mesh Machine

Welded Wire Mesh Machine
