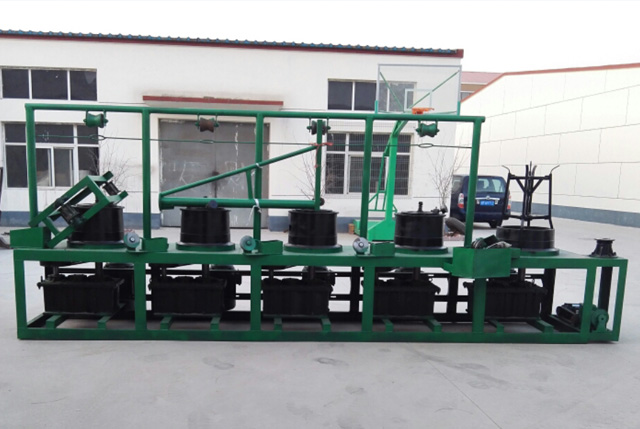

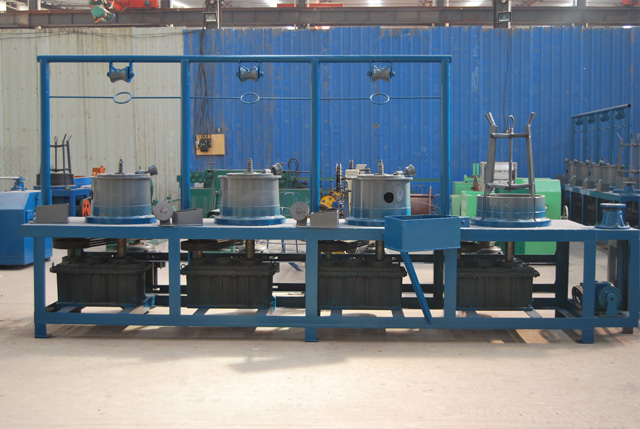

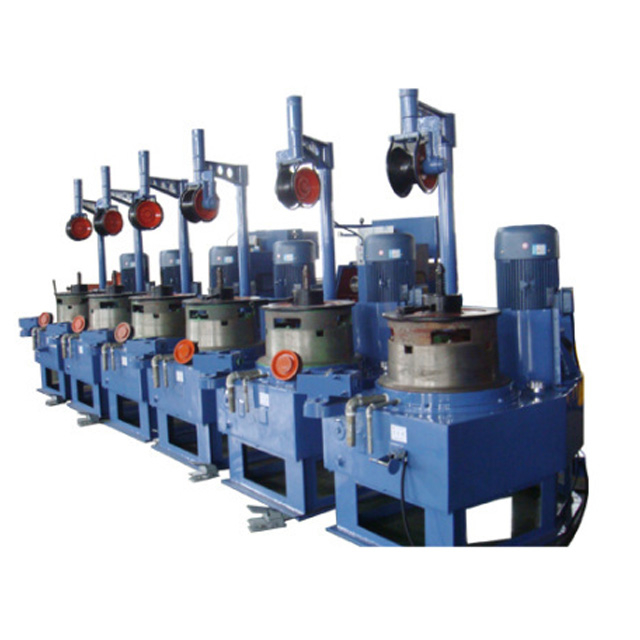

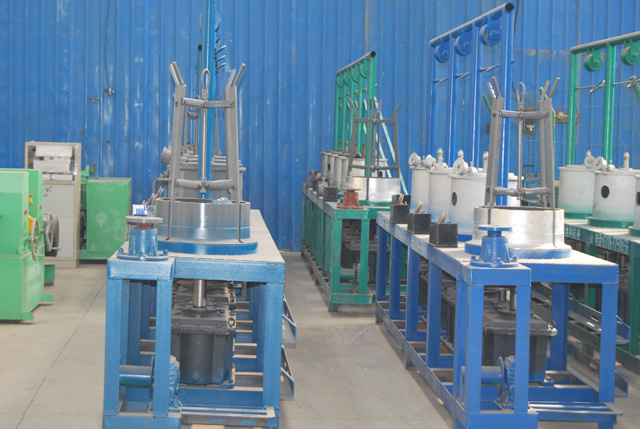

The set of machine is a ideal equipment drawing wire stock of high, medium carbon steel, as well as copper, aluminum and alloy. The machines are applied to drawing wire in the factories, such as wire steel factory, metal mesh factory and nail making factory, etc.

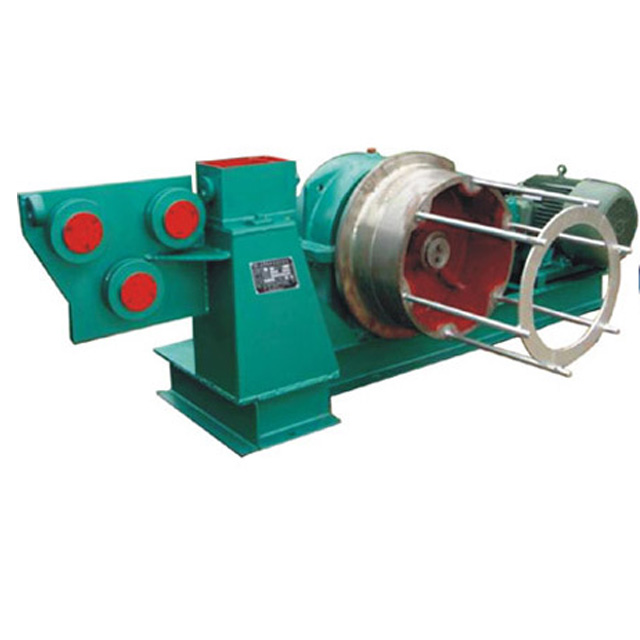

Structure:

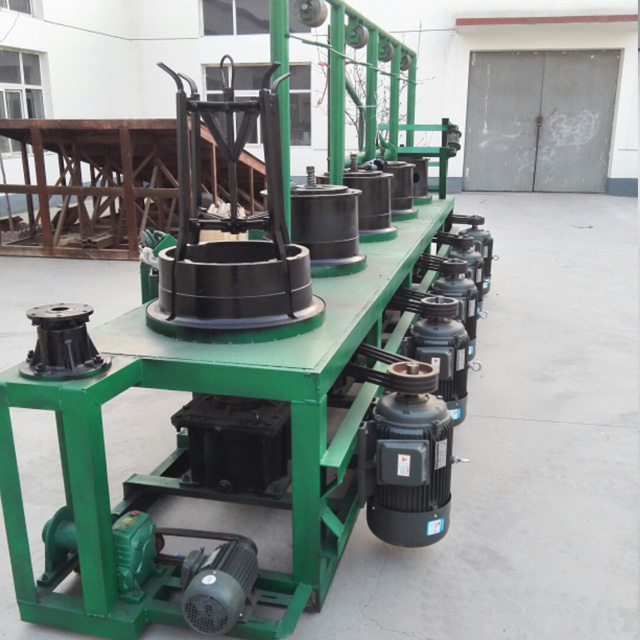

The equipment consists of main reduction box.die casing,wheel frame ,sash brace and electrical control system.The spinning drawing blocks are driven by JZT series motor, with gear coupling runs changeling gears to reduce speed.The drawing blocks are vertically fixed in sealed box body.The gear pair are lubricated with oil.
In order to lower residual heat on the surface of the block,the cooling means is installed in inter-wall of the block.The wortle is soaked in cooling water to reduce its working temperature.
The machine runs with carve or linkage.The safety halt gear is installed by the position of operating block.
Specification:
| Parameter/type | 6.5-3.7mm(Quadruple tank) | 3.7--2.0mm(Quadruple tank) | 2.0-0.7mm(Big coolant tank) |
| Voltage | 380V | 380V | 380V |
| Frequency | 50HZ | 50HZ | 50HZ |
| Power | 15KW(2sets); 11KW(2sets); 5KW(1set) | 7.5KW(4sets); 1.5KW(1set); | 11KW(1set); 3.0KW(1set); |
| Control cabinet | 1 set | 1 set | 1 set with 10 molds |
| Drum diameter | 550-600mm | 550--600mm | 260—500mm |
| Max inlet diameter | 6.5mm | 4.0--3.7mm | 2.0mm |
| Minimum final diameter | 3.7--4mm | 2.0mm | 0.7mm |
| linear velocity | 120--160m/min | 110-170m/min | 250—380r/min |
| Overall dimensions | 4.05*1.5*2.2 m | 4.1*1.3*2.5 m | 2.4*1.2*1.5m |
| Weight(about) | 3 ton | 2.5 ton | 700KG |
| lubrication type | Wire drawing powder | Wire drawing powder | water |
| The machine can be adjusted according to clients’ demand |
