cattle fence

Views: 15     Author: kinty      Publish Time: 2016-08-30      Origin: Shijiazhuang Tianyue Honest Co.,Ltd

Item: Cattle fence/glavanized cattle fence/cattle fence supplier/ hot-DIP galvanized cattle fence/farm fence/field fence

1. General Use: The products is widely used for protection and partition in such field as meadow, woods, fowlery, husbandry, sports ground, riverbanks and ecological engineering,

2. Surface Treatment: Electro-galvanized; Hot-dipped Galvanized; Powder Coated;

3. Advantage:
A. Protect animals an partition land
B. Rational construction, high strength of extension
C.Good flexibility, Long lifespan, easy to maintenance, hard to get rust
D. Quality control: We are manufacturer more than 16 years, have own quality control department to make sure the quality when producing the goods.
E. With innovative and firm structure, flat surface, uniform opening.
F. Neither loose nor break even when partial cutting or hit occur.
G. Less weight, easy transport, fast installation
4. Specification:
A. Distance in cm: (vertical) 15-14-13-11-10-8-6; (horizontal) 15-18-20-40- 50-60-65;

B. Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m;

C. Length: 115 inch (50m) or 330 inch (100m);

D. Wire Distance, roll height and length can be customized.
the size of cattle fence

Num type Specification Gross  Weight
(kg)
Set  and  bottom  wire  Diameter
(mm)
In  wire
Diameter
(mm)
Volume  diameter  (mm)
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 270
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0 270
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 270
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.2 270
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 270
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0 270
7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0 270
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0 270
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 270
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 270

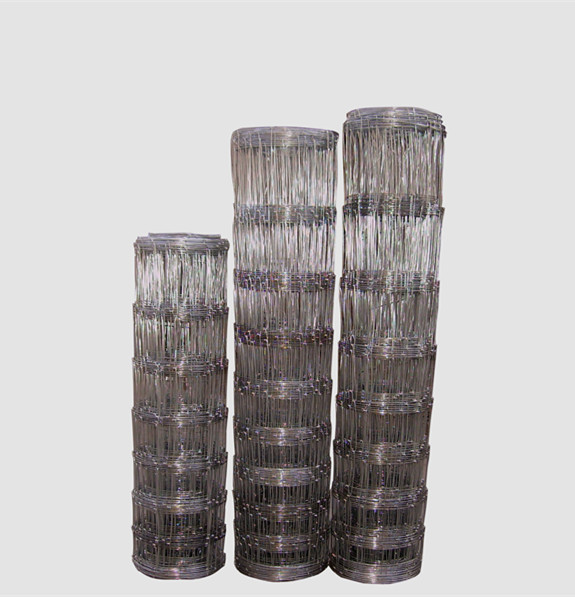

grassland fence
