welded wire mesh products detailed introduction

Views: 20     Author: tyb@tianyueconstruction.com Candy Gao     Publish Time: 2016-09-13      Origin: Site

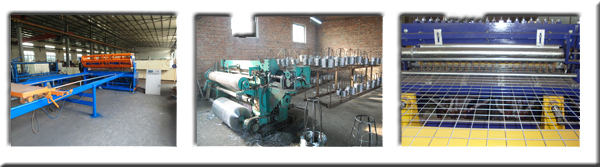

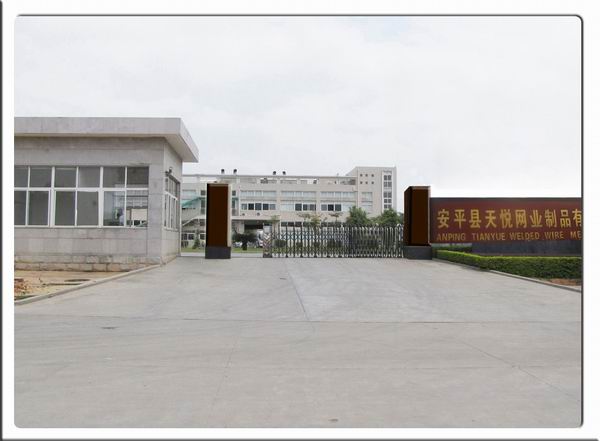

Shijiazhuang Tianyue Honest Co.,Ltd established in 2006 in China. It has 30 sets of all kinds drawing wire equipment, 50 sets of welding mesh machines and 2 galvanized production lines. Our company has strong manufacturing capability and produced welded wire meshes,  fencing meshes and galvanized wires in which fencing meshes are our main products. We have about 230 staff members.
We also carry out a strict quality management system in accordance with ISO9001 requirement. We have successfully set up business relationships in Mid East, North America, Southeast Asia and Western Europe.Our annual export value is at least USD2,000,000.
electro galvanzied welded wire mesh after welding
electro galvanzied welded wire mesh before welding
hot-dipped galvanized welded wire mesh after welding
hot-dipped galvanized welded wire mesh before welding
PVC coated welded wire mesh
Supply forms: panels or rolls
Wire diameter : 3.2-3.8mm or as your special request
Panel length: 2m-3m
Panel width: 0.5m-2.5m
Roll length:5m-150m
Roll width:0.5m-2.5m
Material: selected quality carbon steel, galvanized steel wire, pvc coated wire etc
Surface finished: galvanized, hot-dipped galvanized, pvc coated, painted, spraying etc
Application: railway road, construction, protection, etc

Specification List of Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,



Welcome to enquiry to our business email: tyb@tianyueconstruction.com
